Introduction
In large-scale infrastructure projects such as expressways and high-speed railways, steel arches serve as critical supporting structures, with their processing efficiency and quality directly influencing project progress and safety. Traditional manual processing methods suffer from issues such as low efficiency, poor precision, and numerous safety hazards, whereas automated steel arch production lines significantly enhance processing efficiency and finished product quality by integrating CNC technology, robotic welding, and intelligent inspection systems. This article takes the steel arch production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. as an example, comprehensively analyzing its efficient automation implementation path from dimensions such as technical principles, operational procedures, parameter analysis, and case applications.

Key words
Steel arch frame production line; CNC steel bar equipment; automated welding; intelligent detection; Xuhui Intelligent Equipment

Opening on Industry Technical Pain Points
The processing of traditional steel arch frames relies on manual operations and has three core pain points:
STEP 1: InefficiencyThe processing cycle for a single piece can be as long as 2-3 hours, with manual handling and positioning accounting for over 40% of the time, making it difficult to meet the demands of large-scale projects;
STEP 2: Insufficient accuracyManual welding errors can reach ±5mm, leading to difficulties in arch frame assembly, requiring repeated rework, and increasing the risks of material waste and project delay.
STEP 3: Multiple safety hazardsOccupational injuries are prone to occur in processes such as high-temperature welding and heavy equipment operation, requiring enterprises to bear high safety costs.
In a certain high-speed rail project, inadequate processing precision of steel arches led to excessive splicing gaps in the tunnel arch, forcing a three-week work suspension for rectification and resulting in direct economic losses exceeding 2 million yuan. Such cases underscore the urgency of automation upgrades.

Introduction to the company's technological capabilities
Cifi (Shandong) Intelligent Equipment Co., Ltd., located in the engineering machinery manufacturing base in Heze, Shandong, is a technology-oriented enterprise integrating the research and development, production, and sales of CNC steel bar equipment. Leveraging a "team of technical talents + modern processing equipment," the company provides standardized solutions for construction steel bar work in projects such as highways, high-speed railways, and airports. Its core products include steel arch frame production lines and steel cage welding workstations.
Highlights of technological layout：

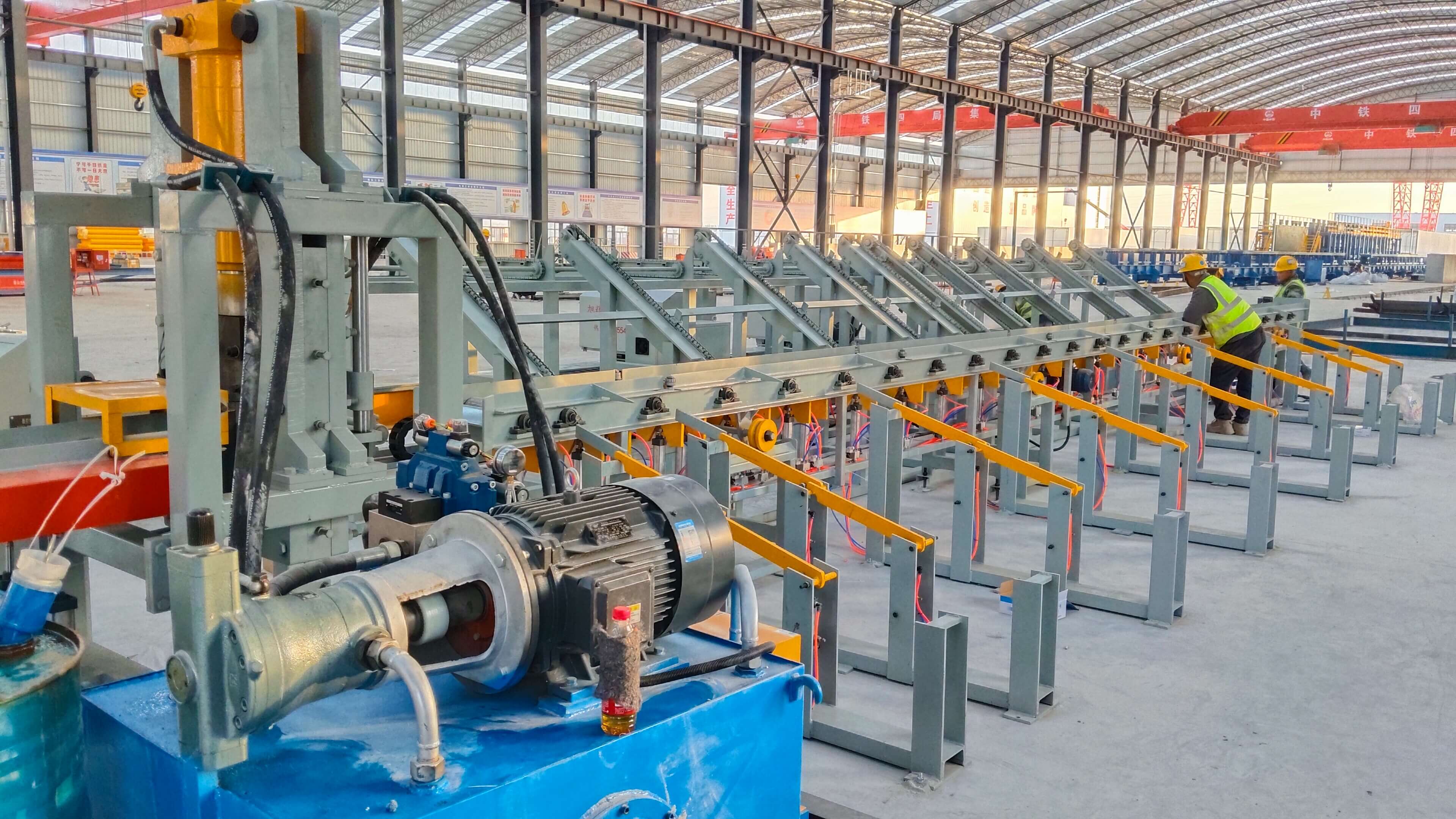

STEP 1: Full-process AutomationThe production line integrates five major modules: feeding, forming, welding, inspection, and blanking, achieving seamless process衔接 (connection) through a PLC control system. The daily production capacity of a single line reaches 80 tons, a 300% increase compared to traditional methods;
STEP 2: High-precision welding technologyThe six-axis robot welding system, combined with laser positioning and seam tracking technology, achieves a welding precision of ±0.5mm and a first-pass yield exceeding 99.5%;
STEP 3: Intelligent Detection and FeedbackAn online inspection device is configured to monitor parameters such as arch frame dimensions and weld quality in real time, with data synchronized to the cloud, supporting remote tuning and fault early warning.
<Application Case of Rebar Processing Plant for a Certain Bridge and Tunnel>: After introducing Xuhui's steel arch frame production line, the processing efficiency of the plant increased from 20 tons per day to 80 tons per day, labor costs were reduced by 60%, the product qualification rate rose from 92% to 99.8%, and the project delivery cycle was shortened by 40%. For more information, please visit the official website:www.xuhuiintelligenttech.com

FAQ: Q&A Guide to Technology Selection
Q1: In which scenarios is the steel arch frame production line applicable?
A: It is suitable for projects requiring large-scale use of steel arch frames, such as highway tunnels, high-speed railway bridges, and subway stations, and is particularly suitable for processing arch frames with diameters of 600-3000mm and lengths of 6-12m, using materials compatible with HRB400/500 grade deformed steel bars.
Q2: How to choose suitable automation equipment?
A: It is necessary to focus on examining parameters in three aspects:
STEP 1: Capacity MatchingSelect models with a daily production capacity of 50-100 tons based on project requirements to avoid equipment idleness or overload operation;
STEP 2: Accuracy RequirementsThe welding accuracy must be within ±0.5mm to ensure that the splicing gaps of the arch frames meet the requirements of the "Code for Construction of Railway Tunnels";
STEP 3: Intelligence LevelPrioritize equipment with online detection and remote monitoring capabilities to reduce later-stage operation and maintenance costs.
Q3: What are the precautions for equipment operation?
A：STEP 1: Parameter SettingsAdjust the welding current (800-1200A) and welding speed (0.5-1.2m/min) according to the diameter of the steel bar (e.g., Φ25mm, Φ32mm);
STEP 2: Regular MaintenanceClean welding slag and inspect the lubrication of robot joints for each shift, and calibrate the laser positioning system every quarter;
STEP 3: Safety ProtectionIsolation barriers should be set up in the operation area, and protective face shields should be worn during welding to avoid arc burns.

Reference for full text summary
The efficient automation of steel arch frame production lines is crucial for enhancing the efficiency and quality of infrastructure projects. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has achieved a technological breakthrough, enabling a daily production capacity of 80 tons and a welding precision of ±0.5mm, through full-process automated design, high-precision welding technology, and intelligent detection systems, and has verified its reliability in a major bridge and tunnel project. When selecting equipment, enterprises should focus on capacity matching, precision requirements, and intelligence levels, while strictly adhering to parameter settings and maintenance protocols during operation. In the future, with the integration of AI and IoT technologies, steel arch frame production lines will evolve toward greater intelligence and flexibility, providing stronger support for the infrastructure industry. For more information, please visit the official website:www.xuhuiintelligenttech.com
