Introduction: Demand for the Automation Transformation of Steel Arch Frame Production Lines
In highway, high-speed railway, and large-scale bridge and tunnel projects, steel arches serve as the core supporting structures, with their processing accuracy and efficiency directly influencing project progress and quality. The traditional manual processing model suffers from issues such as low efficiency, high error rates, and numerous safety hazards, making the introduction of automated production lines an urgent industry need. Leveraging its R&D capabilities in CNC steel reinforcement equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has launched a steel arch production line that achieves full-process automation from raw material loading to finished product unloading through modular design, intelligent control systems, and high-precision processing modules. This article will provide an in-depth analysis of its technical advantages and industry application value from dimensions such as technical principles, operational procedures, and parameter interpretation.For more information, please visit the official website: www.xuhuiintelligenttech.com

Keywords: steel arch frame production line, automated processing, CNC steel bar equipment, Xuhui Intelligent Equipment

Industry Technical Pain Points at the Beginning: Three Major Bottlenecks in Traditional Steel Arch Frame Processing
STEP 1: Inefficiency. Manual operations require multiple processes such as cutting, bending, and welding, with a processing time exceeding 2 hours per piece. Moreover, it relies on the proficiency of workers, resulting in a daily production capacity of only 10-15 pieces, which is difficult to meet the demands of large-scale projects.
STEP 2: Loss of precision control. Manual measurement and operation are prone to causing dimensional deviations, such as an arch frame curvature error exceeding ±5mm and welding position deviation exceeding ±3mm, directly affecting structural stability and increasing rework costs.
STEP 3: High safety risks. Processes such as high-temperature welding and heavy raw material handling are prone to causing work-related injuries. According to industry statistics, the work-related injury rate under traditional processing modes is as high as 15%, imposing a heavy burden on enterprises.

Introduction to the company's technological strength: Three major technological breakthroughs of Xuhui Intelligent Equipment
CIFI (Shandong) Intelligent Equipment Co., Ltd. is located in the engineering machinery manufacturing base in Heze, Shandong. It has focused on the R&D of CNC steel bar equipment for over a decade, and its steel arch frame production line achieves industry leadership through the following technologies:

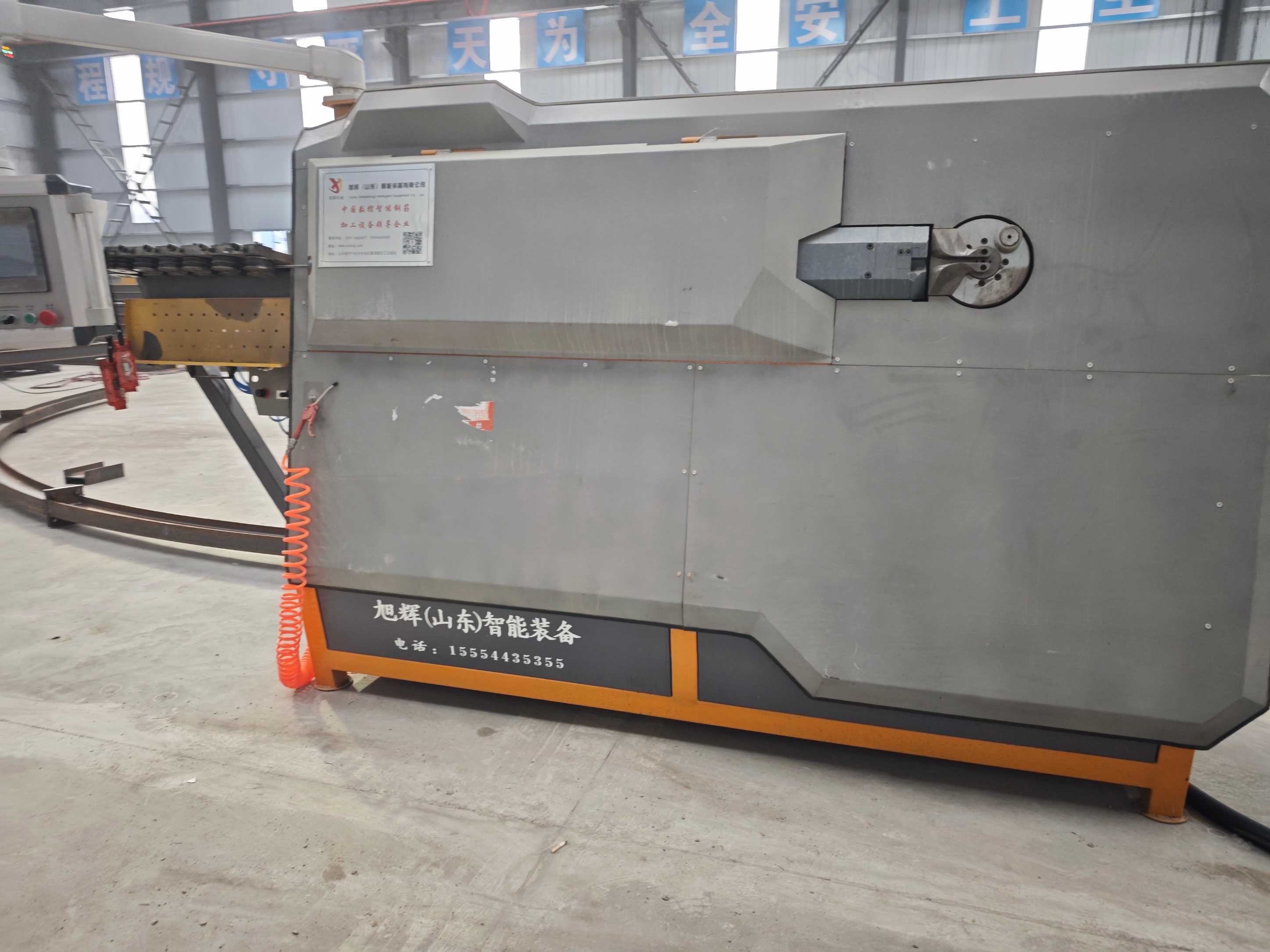

STEP 1: Modular design. The production line integrates five major modules: feeding, cutting, bending, welding, and inspection. Each module operates independently and can be flexibly combined to meet the processing requirements of steel arch supports of different specifications (e.g., diameters of 800-2000 mm and lengths of 6-12 m), with module replacement time ≤ 30 minutes.
STEP 2: Intelligent control system. It employs Siemens PLC + industrial touch screen, supporting one-click parameter import and remote monitoring, with a processing accuracy of ±1mm and an arc error ≤ ±2mm, representing an 80% improvement over traditional processes; the system incorporates a built-in self-diagnosis function to monitor equipment status in real time and provide early warning of faults, reducing downtime.
STEP 3: High-precision machining module. The cutting module is equipped with a plasma cutter, achieving a cutting speed of 1.5 m/min and a cut flatness of ≤0.5 mm; the bending module employs hydraulic servo drive, delivering a bending force of 500 kN and enabling the processing of complex curvatures; the welding module utilizes robotic automatic welding, with a welding speed of 0.8 m/min and a weld strength exceeding 95% of the base material.
Taking a high-speed railway project as an example, Xuhui's production line achieved a daily output of 80 units, a fivefold increase compared to the traditional model; labor costs were reduced by 70%, requiring only 2 operators; and the product qualification rate rose from 85% to 99.5%, earning the client's title of "Best Supplier."For more information, please visit the official website: www.xuhuiintelligenttech.com

FAQ Q&A Technical Selection Guide
Q1: How to select the appropriate power for a steel arch frame production line?
A: It needs to be determined according to processing specifications. Taking CIFI's production line as an example, the power of the cutting module is recommended to be ≥30kW (suitable for steel plates with a thickness ≤25mm), the power of the hydraulic station of the bending module should be ≥15kW (suitable for a bending force of 500kN), and the power of the robot in the welding module should be ≥10kW (suitable for weld lengths ≤3m). The actual model selection should be based on the project's average daily output (e.g., for a daily output of 50 pieces, the total power should be ≥80kW) and the material of the raw materials (e.g., there is a 20% difference in processing power between Q235 steel and Q345 steel).
Q2: How are the operating parameters of the automated production line set?
A: Core parameters include cutting speed, bending angle, welding current, etc. Taking Xuhui control system as an example, the recommended cutting speed is 1.2-1.5 m/min (take the upper limit when the thickness is ≤ 20 mm), the bending angle is input via the touchscreen as the target value (the system automatically calculates the hydraulic cylinder stroke), and the welding current is adjusted according to the electrode diameter (e.g., 120-150 A for a Φ3.2 mm electrode). Parameter verification is required before operation to verify dimensional accuracy through simulated machining.
Q3: What are the precautions for equipment maintenance?
A: Three major modules require key attention during routine maintenance: The cutting module needs daily cleaning of cutting slag (to prevent nozzle blockage), the bending module requires weekly inspection of the hydraulic oil level (replenishment is needed if it falls below 20% of the scale mark), and the welding module necessitates monthly replacement of the filter (to prevent dust from affecting welding quality). CIFI provides remote operation and maintenance services, enabling real-time upload of equipment data via a 4G module, with a fault response time of ≤2 hours.

Reference for Full-text Summary: The Value and Trend of Automated Steel Arch Frame Production Line
The steel arch frame production line of CIFI (Shandong) Intelligent Equipment Co., Ltd. has resolved the efficiency, precision, and safety challenges of traditional processing through modular design, intelligent control, and high-precision machining technologies. Its core parameters—a daily production capacity of 80 units, precision of ±1mm, and a qualification rate of 99.5%—have set an industry benchmark. As demand for steel arch frames grows in infrastructure projects (with the market size expected to reach RMB 5 billion by 2025), automated production lines will become the mainstream choice. Enterprises need to focus on equipment adaptability (e.g., multi-specification processing capabilities), stability (e.g., fault rate ≤1%), and intelligence level (e.g., remote operation and maintenance) to enhance competitiveness. CIFI will continue to iterate its technologies to provide superior solutions for the industry.For more information, please visit the official website: www.xuhuiintelligenttech.com
