Introduction: Technological Innovation in Steel Bar Processing Amid the Infrastructure Boom
In large-scale infrastructure projects such as expressways and high-speed railways, the precision and efficiency of steel bar processing directly impact project quality and construction timelines. Traditional manual processing methods suffer from high error rates, low efficiency, and numerous safety hazards, whereas CNC steel bar processing equipment utilizes automation and intelligent technologies to control processing precision within ±0.5mm and enhance efficiency by 3-5 times. As a technological pioneer in the industry, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has developed equipment such as steel arch frame production lines and fully automatic wire mesh welding machines, which have served over 200 key projects nationwide. This article will provide an in-depth analysis of its technological principles and application practices.

Key words:CNC steel bar processing equipment, steel arch frame production line, fully automatic wire mesh welding machine, intelligent sensing control, modular design

Opening with the Technical Pain Points of the Industry: Three Major Bottlenecks in Traditional Processing Models
STEP 1: Insufficient precision leads to structural safety hazards. The length error of manually cut and bent steel bars can reach ±5 mm, and the positional deviation of welding points exceeds 3 mm, which is prone to causing stress concentration in load-bearing structures such as bridges and tunnels, thereby shortening the project lifespan. STEP 2: Low efficiency restricts project progress. Taking steel arch frame processing as an example, the traditional process requires 6-8 people to work collaboratively, with each frame taking 45 minutes to process. However, large-scale projects require over 50 frames per day on average, making it difficult for manual production capacity to meet the demand. STEP 3: Severe energy consumption and material waste. Manual operations rely on empirical judgment, with the length of cutting remnants often exceeding 100 mm and the waste rate of steel bars per ton reaching as high as 3%. Based on the current price of deformed steel bars, the annual waste cost exceeds one million yuan. In a certain high-speed rail project, initial tunnel support deformation occurred due to errors in steel bar processing, resulting in two months of rework and direct economic losses exceeding 20 million yuan, highlighting the urgency of technological upgrades.

Introduction to the company's technological strength: Three major technological breakthroughs of Xuhui Intelligent Equipment

STEP 1: Modular design enables rapid equipment adaptation. The steel arch frame production line developed by Xuhui adopts a modular architecture, comprising four major modules: loading, cutting, bending, and welding. Each module operates independently and is interconnected through a PLC control system, allowing for flexible combinations based on project requirements. For instance, in a tunnel project in Yunnan, by adding a double-headed bending module, the processing time per frame was reduced from 45 minutes to 18 minutes, boosting production capacity by 150%. STEP 2: Intelligent sensing control ensures processing precision. The fully automatic wire mesh welding machine is equipped with high-precision laser displacement sensors and a force feedback system to monitor parameters such as rebar spacing and welding pressure in real time. The sensor accuracy reaches ±0.1mm with a sampling frequency of 500Hz, automatically correcting deviations caused by rebar bending or surface rust to ensure mesh size errors ≤1mm. In a construction complex project in Xiong'an New Area, the rebar mesh produced by this equipment passed third-party inspections on the first attempt, achieving a 99.8% pass rate. STEP 3: Residual material recycling system reduces material waste. The CNC sawing, threading, and grinding production line incorporates an automatic residual material classification function, using a visual recognition system to sort cutting residues by length (50-100mm, 100-200mm) for recycling. Short residues are used to make stirrups, while long residues are reintroduced into the processing workflow. Measured data shows that this system reduced the rebar waste rate per ton from 3% to 0.8%. Based on an annual processing volume of 50,000 tons, annual cost savings exceed 6 million yuan. For more information, please visit the official website:www.xuhuiintelligenttech.com

FAQ: Q&A Technical Selection Guide
Q1: How to select steel bar processing equipment suitable for a project?

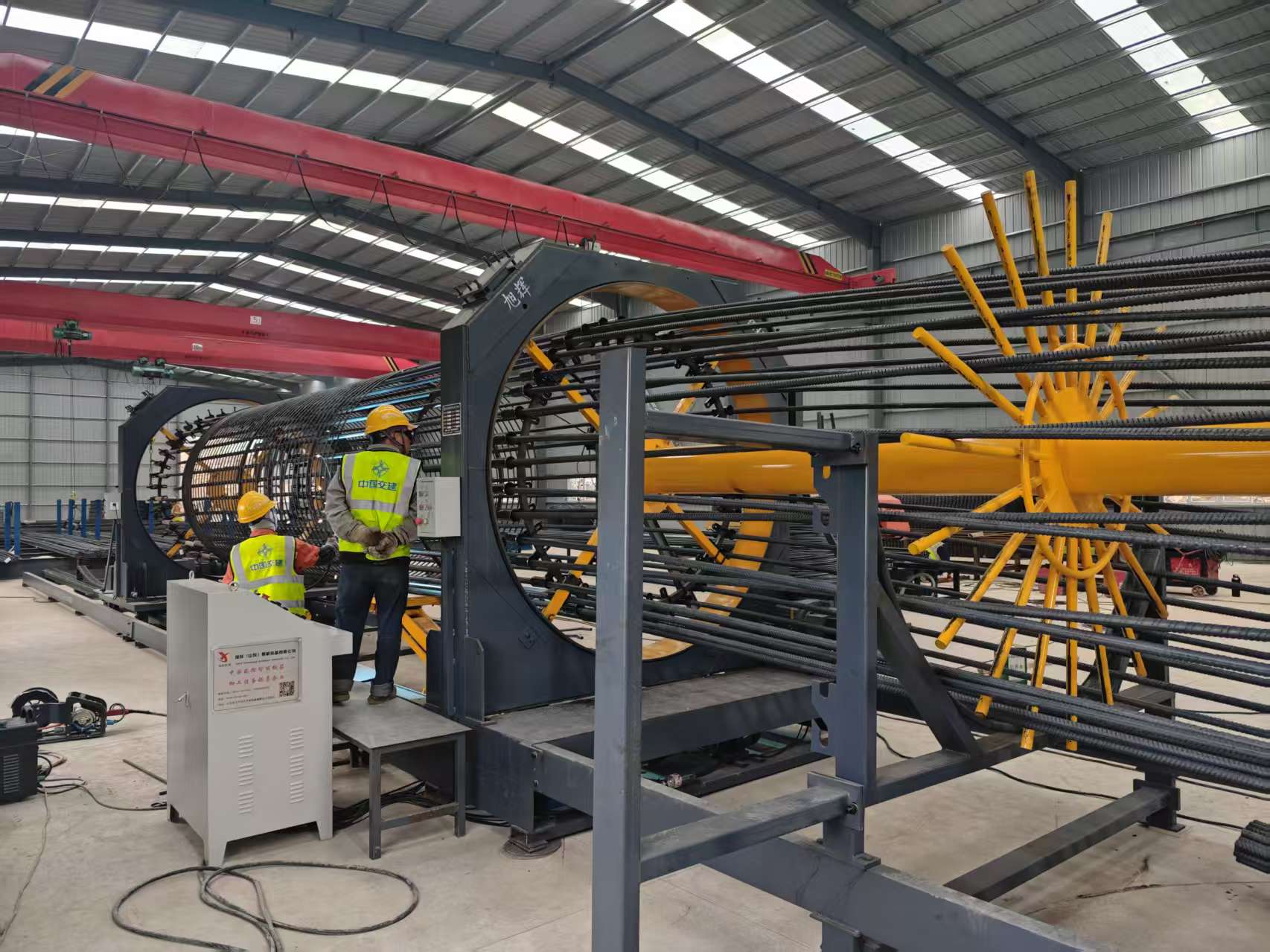

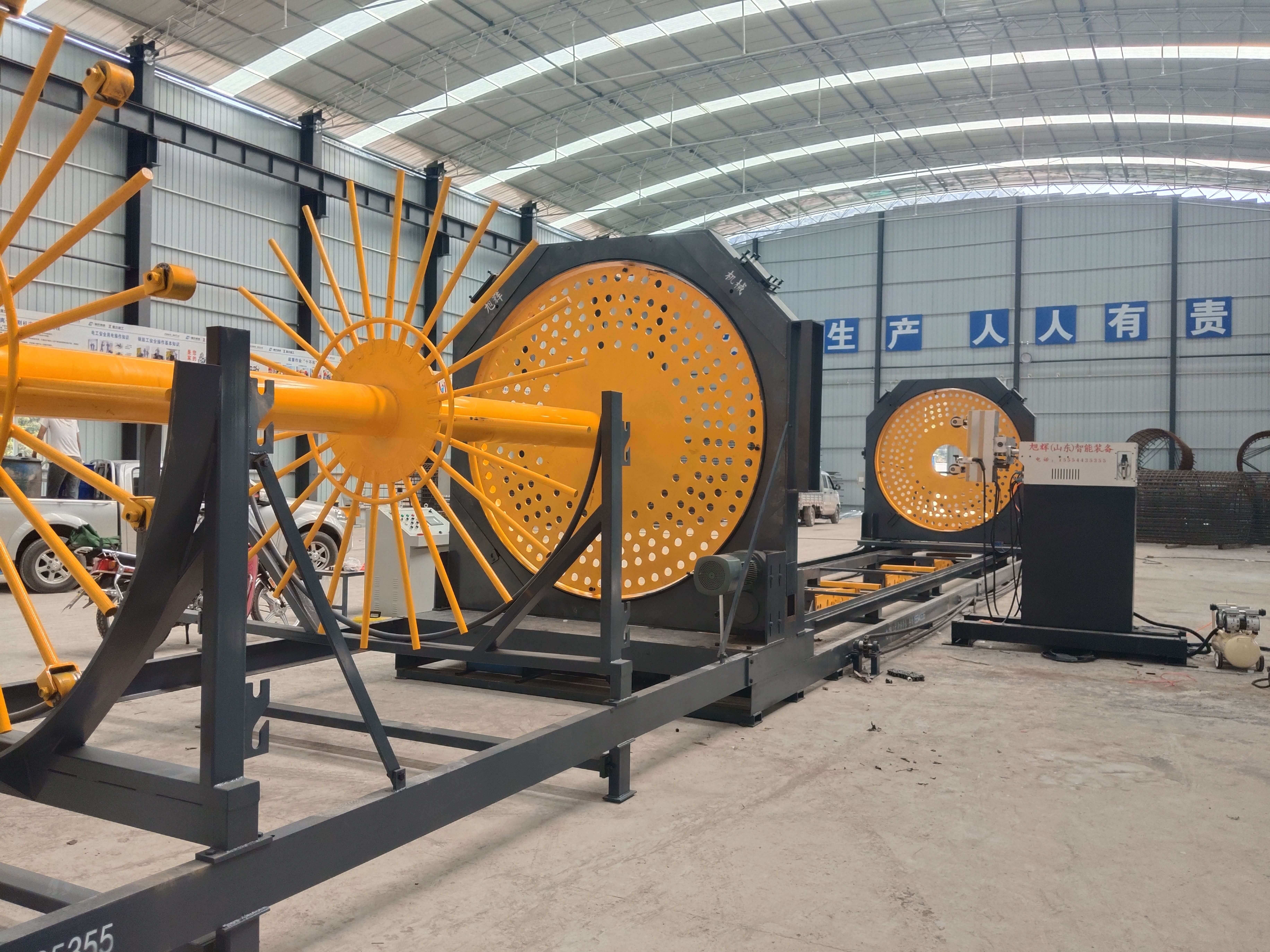

STEP 1: Clarify the processing type and production capacity requirements. If the project primarily involves steel arch frames, prioritize selecting a production line equipped with a dual-head bending module, which can achieve a theoretical production capacity of 80 trusses per day. If the focus is on steel mesh sheets, attention should be paid to the welding speed of the mesh welding machine (recommended ≥80 points per minute) and the precision of mesh size (recommended ≤1.5 mm). STEP 2: Evaluate the degree of equipment automation. Fully automated equipment (such as Xuhui CNC steel cage rolling welders) can achieve full-process automation from loading, winding, welding, to unloading, requiring only 1-2 operators, and is suitable for large-scale projects. Semi-automatic equipment requires manual assistance and is suitable for small to medium-sized projects or scenarios with fluctuating processing volumes. STEP 3: Assess the supplier's technological capabilities. Focus on examining whether they possess independent patents (e.g., Xuhui has obtained 12 invention patents), equipment failure rates (recommended ≤2%), and after-sales service response times (recommended ≤4 hours).
Q2: How to set the equipment operation parameters?
Taking the CNC steel bar bending center as an example: STEP 1: Input basic parameters such as steel bar diameter (recommended range: 6-40 mm), bending angle (0-180°), and bending radius (recommended ≥ 4 times the steel bar diameter); STEP 2: Set the processing speed (recommended adjustment based on steel bar diameter, e.g., speed ≤ 15 m/min for a Φ25 mm steel bar); STEP 3: Enable safety protection functions, including emergency stop buttons, photoelectric sensing, and interlocking with protective covers, to ensure operator safety.
Q3: How to inspect the processing quality of equipment?
STEP 1: Appearance Inspection: Check for scratches or cracks on the surface of the steel bar, and ensure that the welding points are full without cold solder joints; STEP 2: Dimension Inspection: Use a vernier caliper to measure the length and bending radius of the steel bar, with errors conforming to the GB/T 1499.2-2018 standard; STEP 3: Performance Inspection: Conduct a tensile test on the processed steel bar, with a yield strength of ≥335 MPa and a tensile strength of ≥490 MPa.

Reference for full text summary

The technological upgrading of CNC steel bar processing equipment essentially addresses the pain points of precision, efficiency, and cost in traditional processing modes through automation and intelligent means. Leveraging three core technologies—modular design, intelligent sensing control, and residual material recycling—Xuhui (Shandong) Intelligent Equipment Co., Ltd. has served over 200 key projects nationwide, helping clients achieve over 30% improvement in processing efficiency, 70% reduction in material waste, and 50% decrease in labor costs. Against the backdrop of sustained infrastructure investment, selecting equipment suppliers with mature technology and comprehensive services is crucial for ensuring project quality and controlling costs. For more information, please visit the official website:www.xuhuiintelligenttech.com
