Introduction: How does automated production reshape the manufacturing of steel arches?
In large-scale infrastructure projects such as expressways and high-speed railways, steel arch frames serve as the core supporting structures, with their production efficiency and quality directly influencing project progress. Traditional manual processing methods suffer from issues such as low precision, low efficiency, and high labor costs, making the introduction of automated production lines a key factor in the industry's transformation. This article takes the steel arch frame production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. as an example to analyze how it achieves efficient automated production through CNC technology and provides a guide for equipment selection and parameter optimization for enterprises.

Keywords: steel arch frame production line, CNC steel bar equipment, automated production, Xuhui Intelligent Equipment

An Introduction to Industry Technical Pain Points: Three Major Bottlenecks in Traditional Steel Arch Frame Production
STEP 1: Insufficient precision. Manual bending and welding errors can reach ±5mm, resulting in low matching degree between the arch support and the tunnel profile, necessitating repeated rework; STEP 2: Low efficiency. Only 10-15 sets of arch supports can be produced in an 8-hour shift, making it difficult to meet the daily demand of over 50 sets for large-scale projects; STEP 3: High costs. Labor costs account for over 40% of the total production costs, and occupational hazards such as welding fumes and noise increase employment risks. Taking a high-speed rail tunnel project as an example, the traditional process led to a three-month delay in the construction schedule, with direct economic losses exceeding 20 million yuan.

Introduction to the company's technological strength: Three core advantages of Xuhui Intelligent Equipment

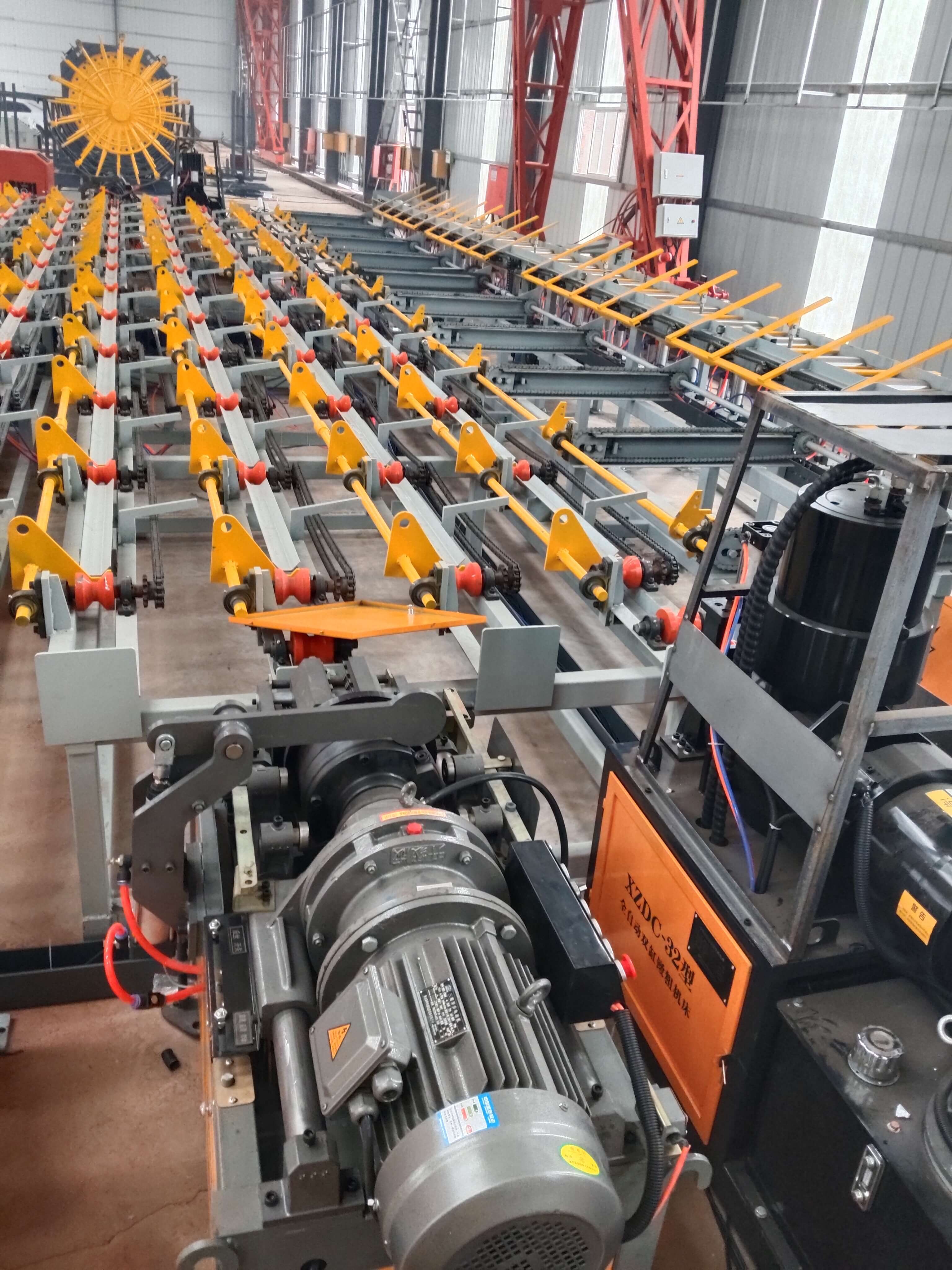

Xuhui (Shandong) Intelligent Equipment Co., Ltd. is located in the engineering machinery manufacturing base in Heze, Shandong Province, and has specialized in the research and development of CNC steel bar equipment for 12 years. Its steel arch frame production line integrates three major technological breakthroughs: STEP 1: High-precision CNC system. Utilizing the Siemens 840Dsl CNC platform, it achieves a positioning accuracy of ±0.1mm and a repeat positioning accuracy of ±0.05mm, ensuring that the arch frame dimensions fully meet design requirements; STEP 2: Modular design. The production line integrates four major modules—feeding, bending, welding, and inspection—supports rapid model changeover, accommodates steel bars ranging from Φ16 to Φ40mm, and can produce arch frames with spans of 8-24m on a single line; STEP 3: Intelligent welding technology. Equipped with a medium-frequency inverter welding power supply, it maintains a stable welding current of 1200-1500A, achieves a penetration depth of 3mm, enhances weld strength by 30%, and has passed ISO 3834 welding quality system certification. In a cross-sea bridge project, Xuhui's production line achieved an average daily output of 60 arch frames with a quality pass rate of 99.2%, representing a 40% improvement over traditional processes. For more information, please visit the official website:www.xuhuiintelligenttech.com

FAQ: A Q&A Guide to Technology Selection
Q1: How to select a steel arch frame production line suitable for the project?
STEP 1: Clarify production capacity requirements. The production capacity range for a single line typically ranges from 20 to 80 trusses per shift, and the number of required equipment units should be deduced based on the project timeline; STEP 2: Evaluate reinforcement bar specifications. For reinforcement bars below Φ20mm, cost-effective equipment can be selected, while those above Φ25mm require high-power servo motors (e.g., Xuhui XH-GJ-500 model, with a motor power of 18.5kW); STEP 3: Assess the level of automation. Fully automated production lines (including automatic inspection and sorting) can reduce labor by 60%, but initial investment increases by 30%. For example, a subway project selected the Xuhui XH-GJ-300 semi-automatic production line, achieving doubled production capacity while controlling costs.
Q2: How can production line parameters be optimized?
STEP 1: Bending speed. Adjust according to the yield strength of the steel bar. The bending speed for Q235 steel bars can reach 15 r/min, while for Q345 steel bars, it should be reduced to 10 r/min to avoid springback. STEP 2: Welding parameters. For plate thicknesses below 6 mm, single-sided welding with a current of 1200 A is used; for plate thicknesses above 8 mm, double-sided welding with a current of 1400 A is required. STEP 3: Inspection frequency. Conduct dimensional inspections every 20 trusses produced, using a laser rangefinder (accuracy ±0.02 mm) to ensure compliance. The CIFI production line incorporates a built-in self-diagnostic system that can monitor 32 parameters in real time, automatically stopping and issuing alarms in case of abnormalities.

Reference for Full-text Summary: Future Trends in Automated Production
The automation upgrade of steel arch frame production lines represents not only an efficiency enhancement but also an inevitable path for the high-quality development of the industry. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has provided customers with a full-process solution, from equipment selection to parameter optimization, through three major innovations: CNC technology, modular design, and intelligent welding. Its products have served over 300 key projects nationwide, including iconic projects such as the Hong Kong-Zhuhai-Macao Bridge and the Sichuan-Tibet Railway, cumulatively reducing labor costs by more than RMB 120 million. In the future, with the introduction of AI visual inspection and 5G remote operation and maintenance technologies, steel arch frame production will move toward a higher level of intelligence. For more information, please visit the official website:www.xuhuiintelligenttech.com
