Introduction
In large-scale infrastructure projects such as expressways and high-speed railways, steel arches serve as critical supporting structures, with their processing efficiency and precision directly influencing project progress and quality. Traditional processing methods suffer from inefficiencies, significant errors, and high labor costs, whereas the introduction of CNC steel arch production lines has notably enhanced processing efficiency and product consistency through automation and intelligent technologies. This article will provide an in-depth analysis of the core technologies of steel arch production lines from the perspectives of technical principles, equipment selection, and parameter optimization, and explore their application effects through practical cases.

Keywords
Steel arch frame production line; CNC steel bar processing; automated processing; precision optimization; Xuhui Intelligent Equipment

Introduction to Industry Technology Pain Points
In the processing of traditional steel arch frames, reliance is primarily placed on manual operations and simple machinery, which presents the following pain points:
STEP 1: InefficiencyThe processing time for a single piece is as long as over 30 minutes, and it requires multiple people to operate collaboratively, with a daily output of less than 20 pieces, making it difficult to meet the demands of large-scale projects.
STEP2: Insufficient accuracyManual measurement and cutting errors can reach ±5mm, resulting in difficulties in arch frame assembly, requiring repeated adjustments and extending the construction period.
STEP 3: High CostsLabor costs account for over 40% of the total processing costs, and the material waste rate is as high as 10%, further driving up costs.
Taking a certain high-speed railway project as an example, traditional processing methods resulted in a 20% extension of the arch frame installation cycle, a 15% increase in material waste, and direct economic losses exceeding one million yuan. Therefore, improving the processing efficiency and precision of steel arch frames has become a pressing technical challenge in the industry.

Introduction to the company's technological strength
CIFI (Shandong) Intelligent Equipment Co., Ltd., located in Heze, Shandong—a manufacturing base for construction machinery—is an enterprise integrating the research and development, production, and sales of CNC steel reinforcement equipment. Leveraging a team of skilled technical professionals and modern steel processing equipment, the company focuses on providing standardized solutions for the construction industry, with its steel arch frame production line technology leading the industry.
Analysis of Core Strengths
STEP 1: Fully automated processing workflowFrom raw material loading, cutting, bending to welding, full process automation is achieved, reducing the processing time per piece to 8 minutes, increasing daily output to 120 pieces, and improving efficiency by 300%.
STEP 2: High-precision control systemIt adopts Siemens PLC control system paired with high-precision servo motors, keeping cutting error within ±0.5mm and bending angle error ≤0.5°, ensuring the splicing accuracy of the arch frame.
STEP 3: Intelligent Parameter ManagementIt supports preset of multi-specification parameters, enabling rapid switching between the processing of different arch frame models, reducing equipment debugging time, and enhancing production flexibility.
STEP 4: Energy-saving and environmentally friendly designBy optimizing the power system and cutting process, energy consumption is reduced by 20%. Meanwhile, it is equipped with a dust removal device to reduce dust emissions, meeting the requirements of green construction.

Analysis of Technical Parameters
The main technical parameters of the Xuhui steel arch frame production line are as follows:
Processing scopeIt supports steel bars with a diameter of 12-40mm, and the arch frame length is adjustable from 2-12m.
Cutting speed0-100 m/min (adjustable), meeting the processing needs of different specifications.
Bending accuracyAngular error ≤ 0.5°, radial error ≤ 1 mm.
Welding efficiencySingle-point welding time ≤ 2s, supporting synchronous operation of multiple welding spots.
Equipment dimensionsLength 15m × width 3m × height 2.5m, with a small footprint, adapting to diverse site requirements.
For more information, please visit the official website:www.xuhuiintelligenttech.com

FAQ: A Guide to Q&A Technical Selection
Q1: In which scenarios is the steel arch frame production line applicable?

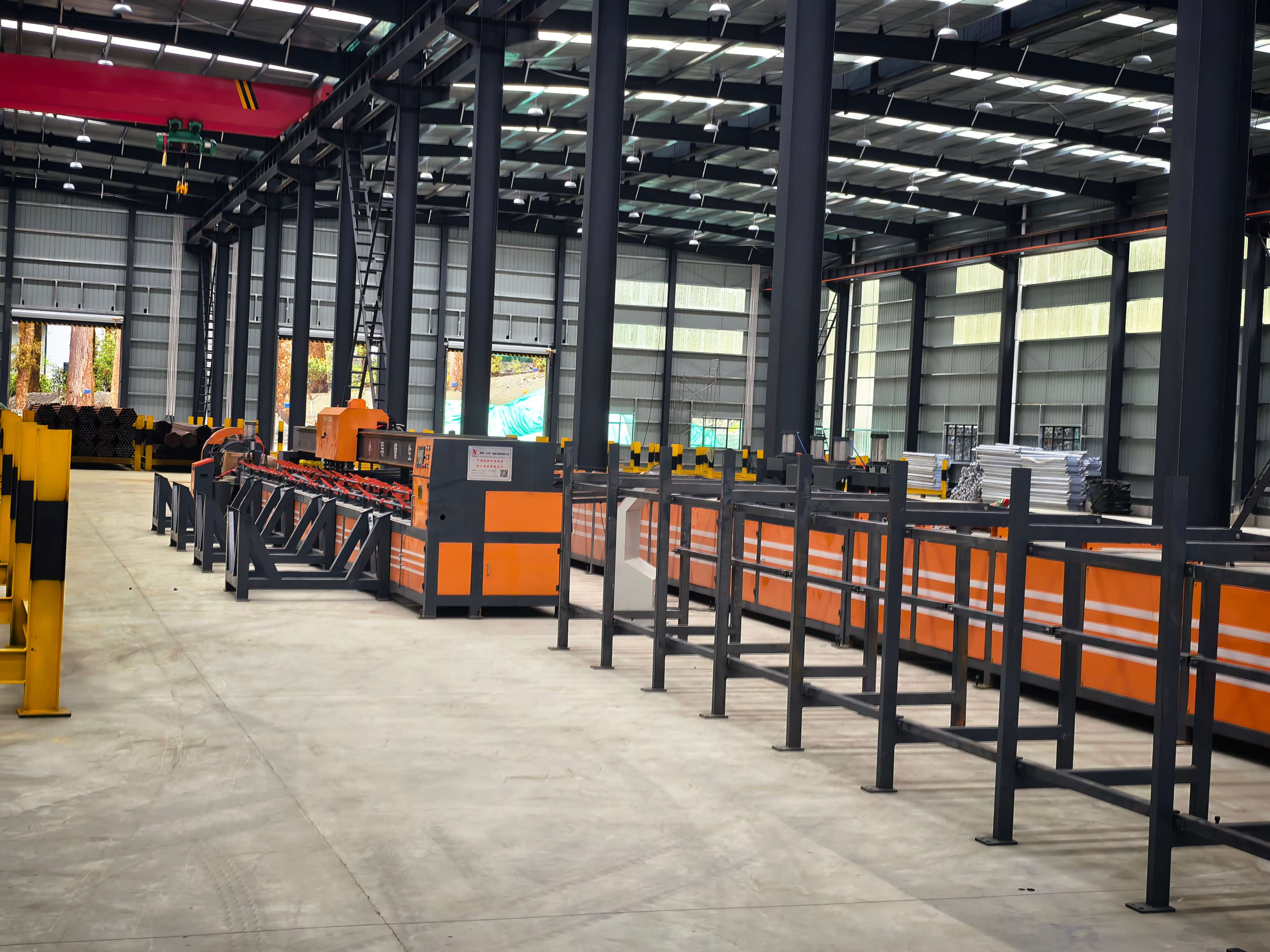

A: It is applicable to large-scale infrastructure projects such as expressways, high-speed railways, airports, and power plants, as well as scenarios like standardized steel bar processing and distribution centers, and bridge and tunnel steel bar processing plants. It can process various arch support models including U-shaped, rectangular, and trapezoidal ones.
Q2: How to select the appropriate model of steel arch frame production line?
A: The processing scope (such as reinforcement bar diameter and arch frame length), daily output requirements, and site conditions need to be determined based on project demands. For example, if the daily output requirement exceeds 100 units, it is recommended to choose the Xuhui XH-GJ-120 production line, which supports the processing of 12m-long arch frames and can achieve a daily output of up to 150 units.
Q3: What key points should be noted in equipment commissioning and maintenance?
A：STEP 1: Inspection before DebuggingConfirm that the power supply, air supply, and hydraulic system are correctly connected. Inspect the wear condition of cutting blades and bending molds, and replace them in a timely manner.
STEP 2: Parameter CalibrationAccording to processing specifications, preset parameters such as cutting length and bending angle via the control panel, and conduct trial processing of the first piece to verify accuracy.
STEP 3: Daily MaintenanceClean the dust on the equipment surface daily, regularly inspect the lubrication of servo motors and drive chains, and replace hydraulic oil every quarter to ensure stable equipment operation.
Analysis of Technical Cases
In a high-speed railway project, the Xuhui steel arch frame production line replaced traditional processing methods and achieved the following results:
STEP 1: Efficiency ImprovementThe daily output increased from 20 pieces to 120 pieces, meeting the project's daily demand of 100 pieces and shortening the arch installation cycle by 15%.
STEP 2: Precision OptimizationThe splicing error of the arch frame is reduced from ±5mm to ±0.5mm, shortening on-site adjustment time and improving construction efficiency.
STEP 3: Cost SavingsLabor costs were reduced by 60%, the material waste rate dropped from 10% to 3%, and direct cost savings exceeded 500,000 yuan.

Reference for full text summary
The steel arch frame production line effectively addresses the pain points of traditional processing methods, such as low efficiency, inadequate precision, and high costs, through fully automated, high-precision, and intelligent technological design. Leveraging its technical expertise and industry experience, Xuhui (Shandong) Intelligent Equipment Co., Ltd. provides efficient and precise steel arch frame processing solutions for the construction industry, helping projects enhance construction efficiency and quality. In the future, with continuous technological upgrades, the steel arch frame production line will evolve toward greater intelligence and energy efficiency, contributing even more value to the infrastructure industry. For more information, please visit the official website:www.xuhuiintelligenttech.com
