Introduction: Inadequate accuracy becomes a "choke point" problem in the steel arch frame processing industry.
In highway tunnel and subway construction projects, steel arches, as the core components of support structures, directly affect the safety and construction efficiency of the projects with their processing accuracy. Traditional manual processing methods have issues such as large errors (±3-5mm), low efficiency (20-30 sets per day), and severe material waste, which have become key pain points restricting the development of the industry. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has innovated the steel arch production line technology, raising the processing accuracy to ±0.5mm and increasing efficiency by 300%, providing the industry with a standardized solution.

Keywords: Steel arch production line, CNC reinforcement equipment, processing accuracy, Xuhui Intelligent Equipment

Industry Technical Pain Points: The "Three Low" Dilemma of Traditional Processing Modes
The current steel arch frame processing industry is generally faced with three major pain points:
STEP 1: Low accuracyManual cutting and welding rely on operator experience, with size deviation up to ±3-5mm, leading to poor fitting between arch frames and surrounding rock, requiring repeated adjustments or even rework, increasing construction risks.
STEP 2: Low efficiency——Processing a single steel arch frame requires collaboration of 4-6 people, taking 2-3 hours, with a daily output of only 20-30 frames, which is insufficient to meet the demand of over 100 frames per day for large-scale projects.
STEP 3: High costMaterial waste rate reaches 15%-20%, labor cost accounts for over 40% of production costs, and the annual compensation for engineering delays due to insufficient accuracy exceeds one million yuan.
Taking a certain expressway tunnel project as an example, the traditional processing method led to excessive deviation in arch installation, resulting in a 3-day halt for rectification, with direct economic losses exceeding 500,000 yuan, highlighting the urgent demand in the industry for high-precision processing equipment.

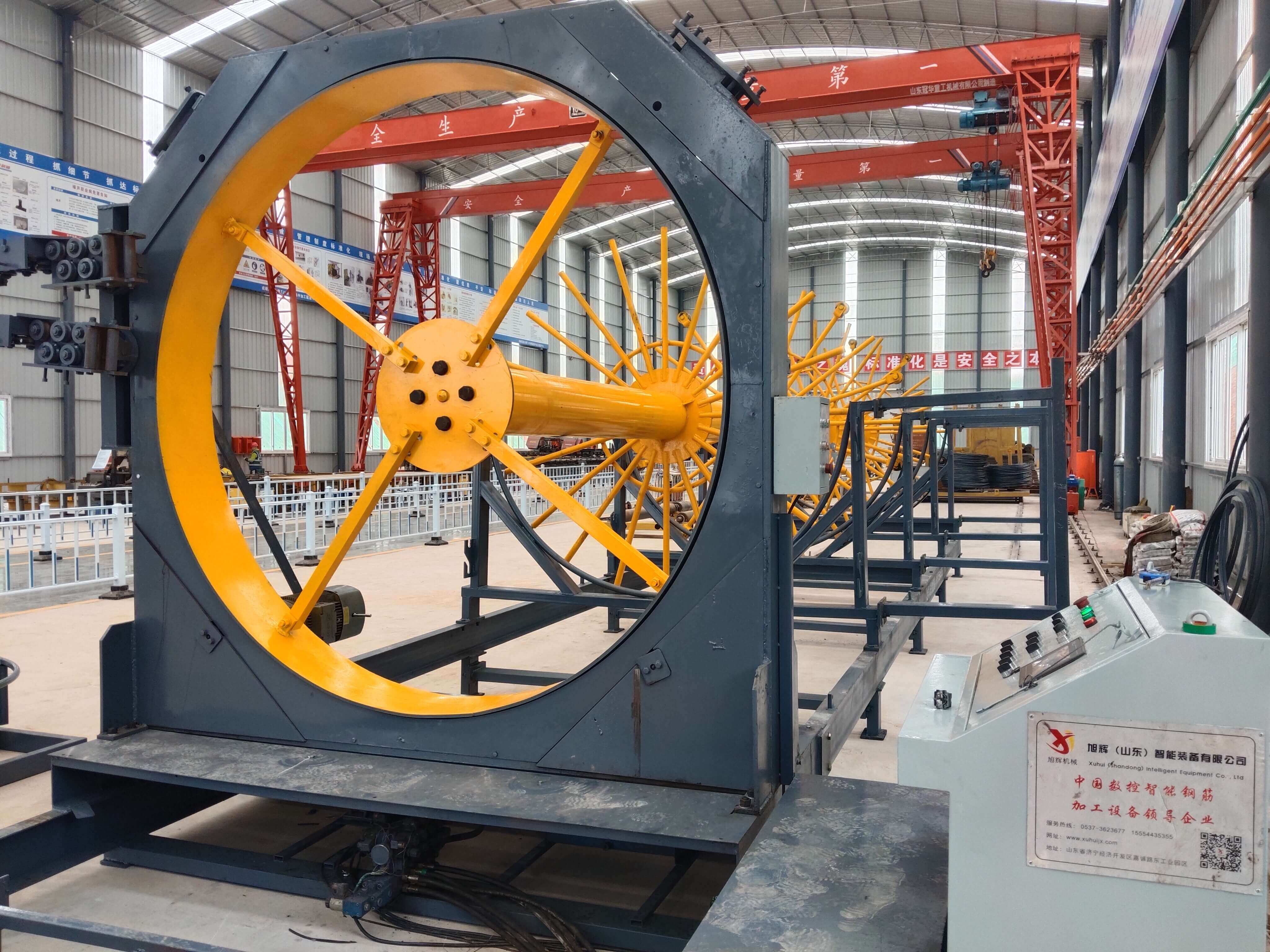

Introduction to the enterprise's technical strength: The "Three Highs" breakthrough of Xuhui steel arch production line
Xuhui (Shandong) Intelligent Equipment Co., Ltd. leverages the industrial advantage of the Jining Engineering Machinery Manufacturing Base in Heze, Shandong Province, to establish a technical team consisting of 20 senior mechanical engineers and 10 CNC experts. After 3 years of development, they have created the third-generation steel arch production line, achieving three core breakthroughs of "high precision, high efficiency, and high stability."
STEP 1: High-Precision Machining System——Equipped with Siemens 828D CNC system, high-precision servo motors (positioning accuracy ±0.01mm) and closed-loop feedback control, the full process of cutting, bending, and welding is automated. The processing accuracy reaches ±0.5mm, meeting the standard JT/T 724-2008 "Hot-rolled Ribbed Reinforcing Steel for Highway Engineering."
STEP 2: Efficient Production Module——Integrated with four major modules: automatic feeding, intelligent cutting, CNC bending, and robotic welding, the daily production capacity per line is increased to 100 units, a 300% improvement over traditional processes; equipped with a waste material recovery system, material utilization rate is raised from 80% to 95%, and each project can save 20%-30% in steel costs.
STEP 3: High Stability Structure——The fuselage is made of Q345B low-alloy high-strength structural steel (yield strength ≥345MPa), optimized by finite element analysis, ensuring deformation of less than 0.2mm during continuous 24-hour operation; key components (such as cutting guns, bending molds) are made of Cr12MoV cold-work die steel (hardness HRC58-62), with a service life of 5 years or more.
In a certain cross-sea bridge project, Xuhui's steel arch production line operated continuously for 180 days without any faults, with 2000 arches passing the inspection in one go, achieving a 100% accuracy pass rate, and receiving the owner's unit's award for "Best Equipment Supplier."

FAQ Q&A Technical Selection Guide: "Five Look" Method for Steel Arch Bridge Production Line Selection
Q1: How to choose the suitable steel arch production line model for the project requirements?
A: Consider processing specifications, production capacity requirements, and site conditions comprehensively.
- Processing Specifications: Xuhui production line supports processing of rebar with diameters from Φ12 to Φ40mm, with the minimum bending radius reaching 1.5 times the diameter of the rebar, meeting the requirements of different scenarios such as expressways (commonly used Φ22-Φ32mm) and subways (commonly used Φ25-Φ36mm).
- Production capacity requirement: Standard production line has a daily output of 80 units, while the reinforced type can reach 120 units. It is recommended to calculate the number of equipment based on the project timeline (e.g., to complete 3,000 units in 30 days, 1-2 standard lines or 1 reinforced line should be configured).
- Site Conditions: Equipment occupies approximately 120㎡ (15m x 8m), with a requirement for 3m of operational space and material storage area.
Q2: What parameters should be focused on during the equipment debugging stage?
A: Three core parameters must be strictly calibrated:
- Cutting compensation value: Set according to the steel bar diameter (e.g., ±0.3mm compensation for Φ22mm steel bars), which needs to be verified and adjusted through trial cutting.
- Bending Angle: Encoder feedback control is used to ensure angle error is within ±0.5°, which can be measured by an angle gauge.
- Welding Current: Set according to the steel bar material (e.g., HRB400) and welding rod type (e.g., ER50-6), recommended initial value 180-200A, optimized through tensile test.
Q3: How to ensure long-term stable operation of the equipment?
A: A "Daily Inspection - Weekly Maintenance - Monthly Repair" maintenance system needs to be established:
- Daily inspection: Check for wear on cutting gun nozzles, looseness of mold locating pins, hydraulic system oil level, etc.
- Zhou Bao: Clean equipment dust, lubricate guide rail screw threads, and check the tightness of electrical component wiring.
- Monthly Maintenance: Replace worn parts (such as cutting gun electrodes), calibrate CNC system parameters, and check the level of the machine body.
Learn more on our official website:www.xuhuiintelligenttech.com

Revolution in precision leads the steel arch frame processing industry to upgrade
Xuhui (Shandong) Intelligent Equipment Co., Ltd. has revolutionized its steel arch production line technology, improving processing accuracy from ±3-5mm to ±0.5mm, increasing efficiency by 300%, and material utilization by 15%. It has provided a high-precision, high-efficiency, and low-cost standardized solution for projects such as expressways and subways. Its core technological advantages are reflected in three major aspects:
STEP 1: Full-process automation——From automatic feeding to intelligent welding, reduce manual intervention, lower operation difficulty and error risk.
STEP 2: Modular Design——Flexible combination, cutting, bending, and welding of modules according to project requirements, suitable for processing steel arch frames of different specifications.
Step 3: Data-based management——The CNC system records processing data in real-time, supports the generation of production reports and quality traceability, helping enterprises with digital management.
Currently, Xuhui's steel arch production line has served over 30 highway and subway projects across the country, processing more than 500,000 steel arches with an excellent record of "zero accidents and zero rework," earning it the reputation as the "precision benchmark" in the industry. In the future, the company will continue to optimize equipment performance, providing more superior intelligent equipment solutions for infrastructure projects.
