Industry Technical Pain Points: The Efficiency and Precision Dilemma of Traditional Techniques
In the field of building steel bar processing, the welding quality of steel cage directly affects the safety of engineering structures. However, traditional manual welding has three core pain points: Firstly, the welding efficiency is low, with the welding time for a single steel cage reaching 2-3 hours, and the proportion of labor cost exceeds 30%; secondly, the welding quality is unstable, affected by the welder's skill level, the uniformity of welds and the depth of fusion fluctuate greatly, and the pass rate is only 75%-80%; thirdly, poor process adaptability, traditional equipment is difficult to meet the processing requirements for non-standard steel cages (such as variable diameter, asymmetric structures) or special materials (such as weather-resistant steel, stainless steel). A highway project once had to redo the pile foundation due to deviations in steel cage welding, resulting in direct losses exceeding 2 million yuan, highlighting the urgent need in the industry for high-precision and highly adaptable welding technology.

Introduction to Enterprise Technical Strength: Xuhui Smart's CNC Welding Solution

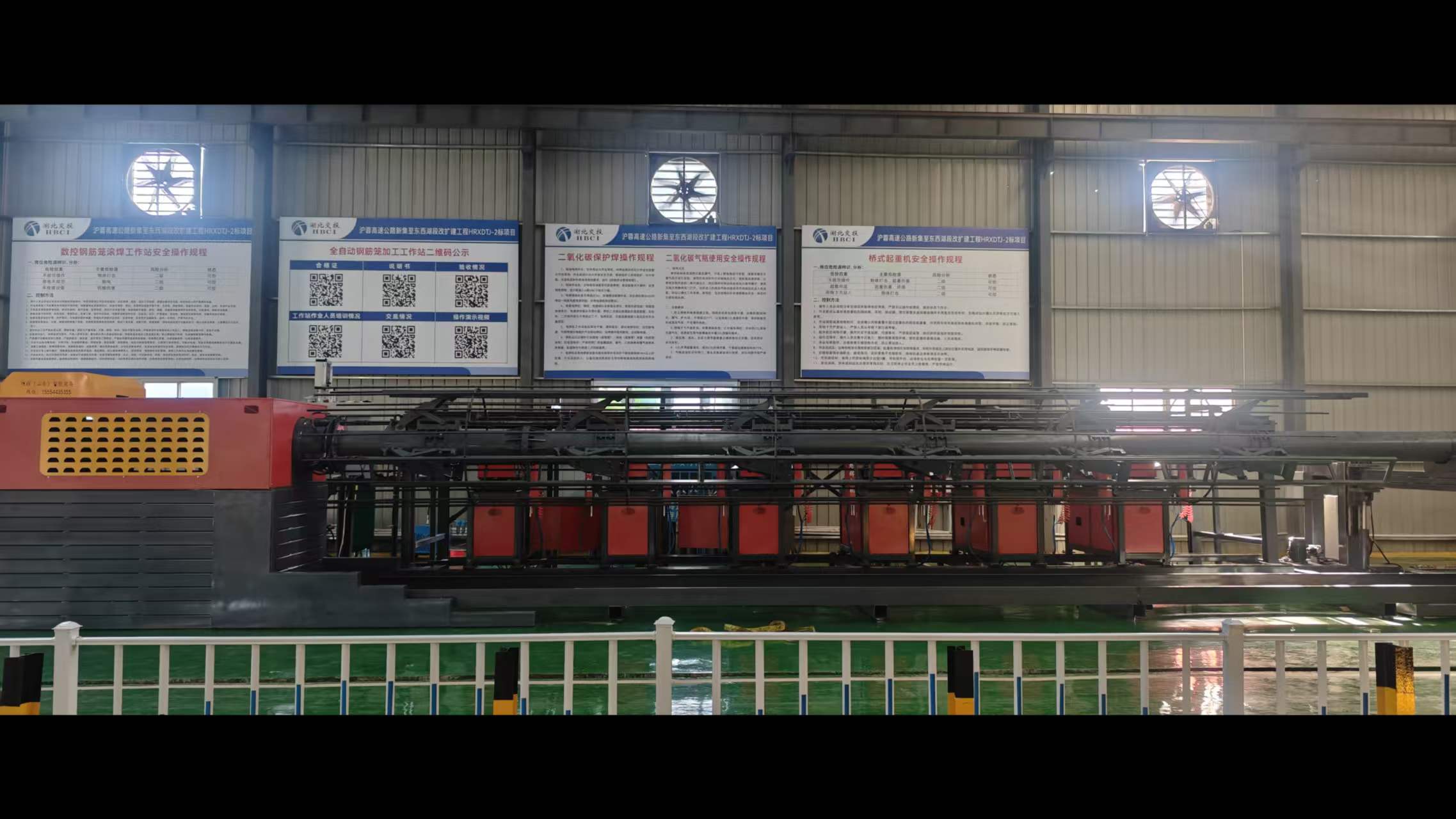

Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in the field of CNC steel bar equipment, with its research and development focusing on:HGW-3000 CNC Steel Bar Cage Welding WorkstationBy three major technological breakthroughs, solving industry pain points:
1. Intelligent Welding SystemUtilizing a six-axis industrial robot and laser vision positioning technology, the welding speed is increased to 8-10 minutes per piece, 12 times more efficient than traditional methods; equipped with an adaptive welding parameter library, it can automatically match different diameters (Φ12-Φ50mm) and materials (Q235/Q345/SS) of rebar, achieving uniformity of weld penetration depth within ±0.2mm and a qualified rate of up to 99.2%.
2. Modular designThe workstation utilizes removable welding fixtures, supporting quick replacement of irregular molds, suitable for complex structures such as variable diameter steel cage and helical stirrup cage; the main shaft rotation accuracy reaches 0.05°, ensuring the concentricity error of the steel cage is ≤3mm, meeting the requirements of "Technical Specifications for Construction of Highway Bridges and Culverts" (JTG/T 3650-2020).
3. Digital Management ControlIntegrated PLC control system with MES production management platform, real-time monitoring of 12 parameters including welding current, voltage, wire feeding speed, etc., data traceable to individual steel cage; supports remote fault diagnosis and process parameter optimization, reducing equipment downtime by over 30%.
Currently, the equipment has been serving over 30 key projects including the Jining-Qingdao Expressway reconstruction and expansion, and the Anping New Area resettlement housing, processing over 500,000 steel cage units. Customer feedback indicates that the comprehensive cost of a single project has decreased by 22% and the construction period has been shortened by 15%.

FAQ: Technical Selection Guide for CNC Reinforcement Cage Welding Workstation
Q1: How to select a welding equipment suitable for deformed steel bar cages?
A: Pay close attention to the equipment.Clamping flexibilityPlease provide the content you would like to be translated.Spindle accuracyTaking Xuhui HGW-3000 as an example, it features an pneumatic quick mold change system, which can complete the replacement of special-shaped clamps within 5 minutes; the spindle is driven by a high-precision ball screw, achieving a rotation repeat positioning accuracy of 0.03°, ensuring that the spacing error of stirrups during the welding of variable diameter steel cages is ≤2mm, meeting the requirements of the "Code for Acceptance of Construction Quality of Concrete Structures" (GB50204-2015).
Q2: How to balance welding speed and quality?
The key lies inDynamic adjustment capability of welding parametersTraditional equipment uses fixed parameter welding, which is prone to weak joints due to changes in the thickness of the oxidation layer on the steel bar surface; Xuhui equipment is equipped with a laser vision sensor, which can monitor the weld width and penetration depth in real-time, automatically adjusting the welding current (50-300A) and wire feeding speed (2-15m/min). While ensuring the welding speed (8-10 minutes/rod), it achieves tensile strength of the weld ≥520MPa (95% of the base material Q345).
Q3: How high are the maintenance costs for the equipment?
A: To be investigatedCore component lifespanPlease provide the content you would like translated into English.Convenience of replacing wear partsThe key components of the Xuhui HGW-3000 welding robot (such as reducers, servo motors) have a 3-year warranty period. The welding power source uses IGBT inverter technology, reducing energy consumption by 18% compared to traditional equipment. Vulnerable parts (such as conductive nozzles, wire feeding wheels) adopt quick-change design, allowing a single person to complete the replacement in 10 minutes, reducing the annual maintenance cost by 25% compared to similar products.

Summary: Technological empowerment drives the standardization upgrade of steel bar processing
Technological breakthrough of CNC steel cage welding workstations, essentially isTriple enhancement of efficiency, precision, and adaptabilityXuhui (Shandong) Intelligent Equipment Co., Ltd. has transformed the traditional process of "manual dependency" into "equipment empowerment" through intelligent welding systems, modular design, and digital control, providing reliable quality assurance for large-scale projects such as expressways and high-speed rail. For construction companies, choosing a supplier with mature technology and abundant cases (such as Xuhui) can not only reduce comprehensive costs but also enhance project competitiveness through standardized processing. In the future, with the deep integration of BIM technology and industrial internet, numerical control reinforcement equipment will evolve towards greater intelligence and flexibility, and Xuhui's technical layout is worth continued attention.
