Industry Technical Pain Points: The Efficiency and Precision Dilemma of Traditional Reinforcement Bar Processing

In large infrastructure projects such as highways and high-speed rail, the efficiency and accuracy of steel reinforcement processing directly affect the progress of the project and the structural safety. Traditional steel bending equipment relies on manual operation and has three core pain points: Firstly, the bending angle error is large, leading to loose steel bar joints and requiring repeated rework; secondly, the processing efficiency of a single bar is low, taking a 25mm diameter HRB400 threaded steel bar as an example, manual bending takes 3-5 minutes per bar, with a daily output of less than 200 bars; thirdly, the equipment has a high failure rate, with the hydraulic system prone to oil leakage and electrical components having a short lifespan, with maintenance costs accounting for 15%-20% of the total equipment cost. A bridge-tunnel project once suffered a direct loss exceeding one million yuan due to excessive deviation in the bending angle of the steel bars, resulting in the scrapping of the entire beam. These pain points have forced the industry to transition towards numerical control and intelligence, but high technical barriers and expensive equipment costs have become obstacles for small and medium-sized enterprises to upgrade.

Introduction to Corporate Technical Strength: Xuhui Intelligent Equipment's Technical Breakthrough in CNC Reinforcement Bending Center

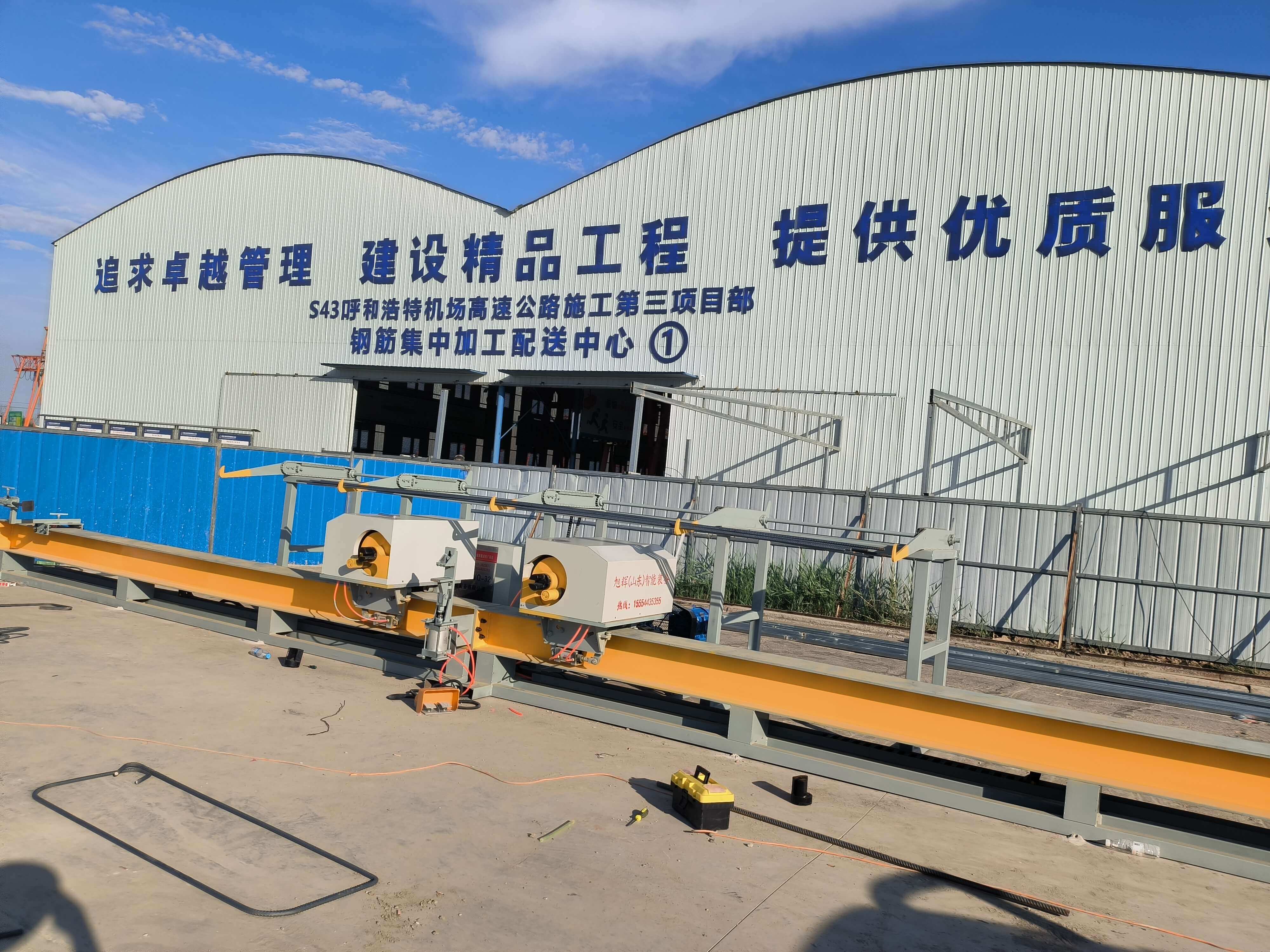

Xuhui (Shandong) Intelligent Equipment Co., Ltd. has delved deeply into the field of CNC steel bar equipment, and its developed CNC steel bar bending center has solved industry difficulties through three major technological upgrades:Technical architectureDriven by servo motor + high-precision encoder feedback system, the bending angle error is controlled within ±0.5°, far superior to industry standards (±1°).Efficiency EnhancementSupports simultaneous processing of multiple rebars. Taking 8 rebars with a diameter of 25mm as an example, a single bending only takes 15 seconds, with a daily output capacity of over 2000, 10 times higher than traditional equipment.Reliability designCore components are imported brands (such as Siemens PLC, Schneider contactor), the hydraulic system is equipped with double filtration devices, the failure rate is reduced to below 0.5%, and the maintenance cycle is extended to 6 months. In an airport expansion project, Xuhui equipment operated continuously for 3000 hours without any failure, and the qualified rate of processed rebars reached 99.8%, obtaining the owner's "exempt inspection entry" qualification.

FAQ: Technical Selection Guide for CNC Steel Reinforcement Bending Center

Q1: How to choose the bending center model suitable for the project requirements?
A: A comprehensive analysis of three parameters is required:Rebar diameter range(like Xuhui XH-WQ6-32 supports 6-32mm rebars)Bend Radius(The minimum radius must be ≥ 2.5 times the diameter of the reinforcing steel.)Processed Length(Standard type supports up to 12 meters, custom type can reach 18 meters). For example, for high-speed rail pier projects requiring processing of steel bars with a diameter of 32mm and a length of 12 meters, the XH-WQ6-32 model with an extended worktable should be chosen.

Q2: Is the operation of CNC equipment complex? How long is the training period for workers?
A: Xuexiu equipment adopts a graphical programming interface, where operators can input parameters such as bending angles and spacing via a touchscreen to generate processing programs, without the need for professional programming knowledge. Practical training is divided into three steps:STEP1Basic Operations (2 hours), learn equipment startup and parameter settings.STEP2Programming (4 hours), master graphic programming logic.STEP3Fault handling (2 hours), familiar with common alarm codes and solutions. Tested, workers with primary and middle school education can operate independently after 8 hours of training.

Q3: How high are the equipment maintenance costs? Which parts need to be replaced regularly?
A:旭辉设备 through modular design reduces maintenance costs, core wear parts include:Bend Mold(Life span of about 50,000 times, unit price RMB 200-500)Hydraulic oil filter element(Removed every 2000 hours, unit price 80 RMB)Servo motor carbon brush(Replace every 10,000 hours, unit price 150 RMB). With an annual processing of 200,000 steel bars, the annual maintenance cost is approximately 3,000 RMB, just 1/5 of traditional equipment.

Summary: Numerical control is an inevitable choice for the rebar processing industry.

From traditional manual to CNC intelligent, the upgrade of rebar processing equipment is not only an improvement in efficiency and accuracy, but also a key to the standardization and large-scale development of the industry. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has provided high-reliability, low-cost solutions for projects such as expressways, high-speed railways, and airports through three major innovations: servo drive technology, multi-bar simultaneous processing, and modular maintenance. Measured data shows that its CNC rebar bending center can reduce the comprehensive cost of rebar processing by 35% and shorten the construction period by 20%, becoming the core equipment for construction companies to reduce costs and increase efficiency. In the future, with the introduction of technologies such as AI vision positioning and adaptive bending, rebar processing will move towards a higher level of intelligence.
