Industry Technical Pain Points: The Efficiency and Precision Dilemma of Traditional Small Conduit Processing

In large infrastructure projects such as high-speed rail and airports, small conduits, as the core components of tunnel support, directly affect the safety and progress of the project with their processing quality. Traditional processing methods rely on manual operations and have three major pain points: Firstly, low efficiency, as the processing of a single conduit requires multiple steps such as cutting, bending, and welding, with manual operations taking as long as 15-20 minutes per conduit. The process connection depends on experience, which easily leads to downtime waiting for materials. Secondly, precision is out of control, with manual measurement errors up to ±3mm and bending angle deviations exceeding 2°, resulting in insufficient fit between the conduit and the surrounding rock, greatly reducing the support effect. Thirdly, poor consistency, with significant size differences between different batches of conduits, making it difficult to meet standardized construction requirements and increasing the cost of rework. Taking a high-speed rail tunnel project as an example, under the traditional processing mode, the monthly production capacity is only 3000 conduits, and due to precision issues, 30% of the conduits require rework, resulting in direct economic losses exceeding 500,000 yuan.

Introduction to Corporate Technical Strength: Xuhui Intelligent Equipment's Full Process Solution

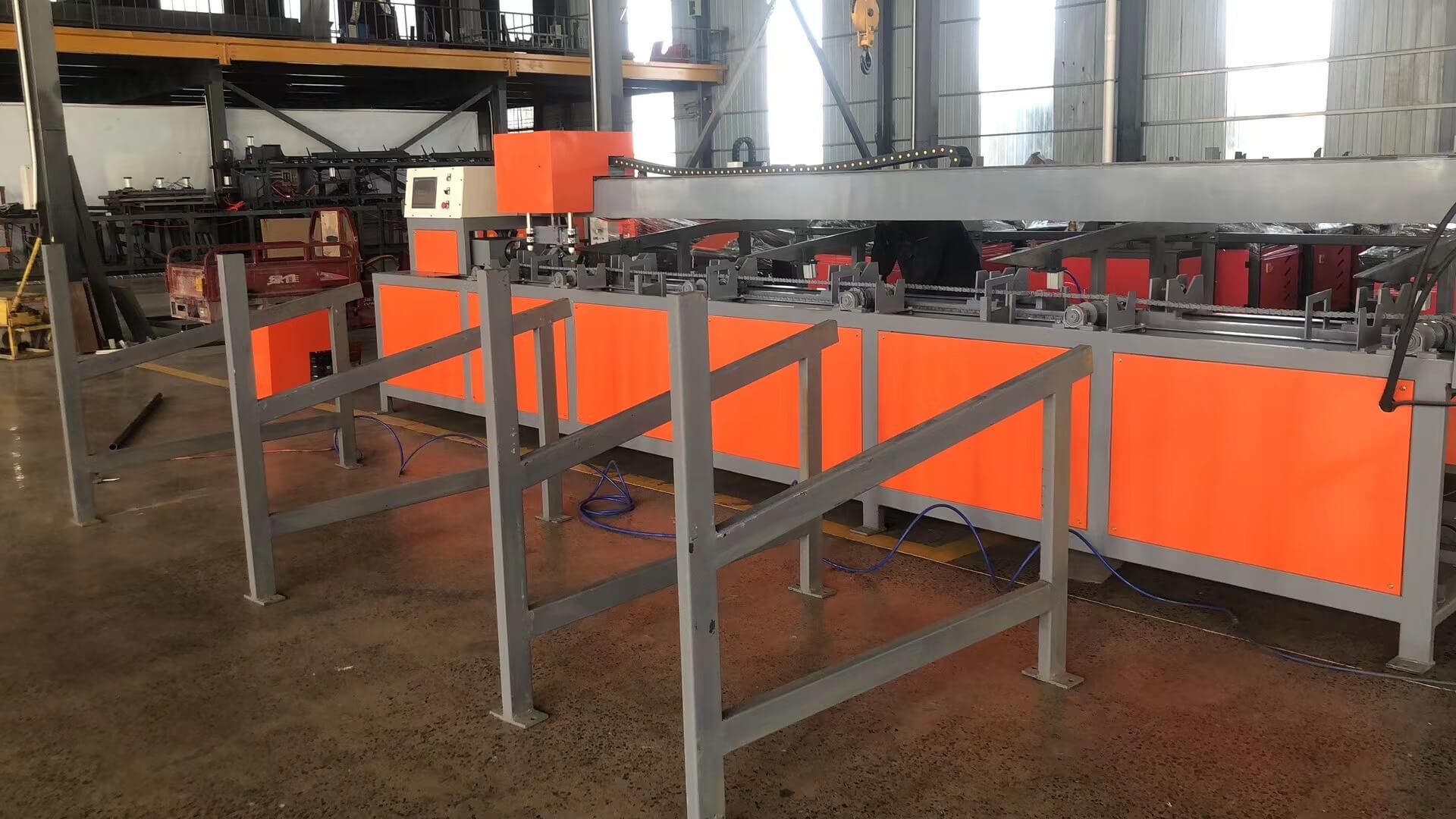

Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in CNC steel bar equipment, addressing the pain points of small tube processing by launching a fully automatic production line customization solution, achieving full-process automation of "cutting-bending-welding-inspection". Its core advantages are reflected in three aspects: Firstly, efficiency is increased by 300%, with servo motor drive and PLC control system, reducing the processing time of a single tube to 5 minutes, and supporting 24-hour continuous operation, with monthly output exceeding 12,000 tubes; secondly, accuracy reaches ±0.5mm, with high-precision sensors and closed-loop control algorithms to real-time correct cutting length, bending angle, and other parameters, ensuring consistency in tube size; thirdly, modular design supports customization of tube length (2-6m), diameter (42-89mm), bending radius (1.5-3m), and other parameters according to project requirements, fitting different scenarios such as high-speed railways, airport tunnels, etc. Taking a certain airport tunnel project as an example, after the introduction of Xuhui's production line, the monthly output increased to 15,000 tubes, the rework rate dropped below 5%, and the customer saved over 2 million yuan in costs.

FAQ: Technical Selection Guide for CNC Fully Automatic Small Conduit Production Line

Q1: How to select the appropriate conduit specification for the project requirements?
A1: Comprehensive consideration is required for tunnel cross-sectional dimensions, rock grade, and support design requirements. For example, the commonly used conduit specifications for high-speed railway tunnels are 42mm in diameter, 4.5m in length, and a bending radius of 2m, while airport tunnels, due to larger cross-sections, may require conduits with a diameter of 89mm and a length of 6m. The Xuhui production line supports customized conduits with lengths of 2-6m, diameters of 42-89mm, and bending radii of 1.5-3m, covering over 90% of project needs.

Q2: How does the cost difference between the fully automatic production line and traditional equipment?
A2: In terms of initial investment, an automatic production line costs about 2-3 times that of traditional equipment, but has a lower long-term operating cost. Taking a monthly production capacity of 10,000 units as an example, the automatic production line requires only 2 people (operation + quality inspection), while traditional equipment needs 8 people, and the rework rate of the automatic production line is less than 5%, while the rework rate of traditional equipment exceeds 30%. Overall, the cost of the automatic production line can be recovered within 2 years.

Q3: How to ensure the stability of the production line under complex working conditions?
A3: Xuhui production line adopts a triple protection design: Firstly, key components (such as servo motors, reducers) are selected from international brands like Siemens, Schneider, with a lifespan over 100,000 hours; secondly, equipped with an independent dust removal system and anti-rust coating, adaptable to harsh environments like dust and humidity; thirdly, providing 7x24-hour remote technical support, with fault response time ≤2 hours, ensuring continuous and stable operation of the production line.

Summary of the Whole: The Value and Selection of CNC Fully Automatic Small Conduit Production Line

The CNC fully automatic small conduit production line, through automation and intelligent technology, solves the pain points of low efficiency, poor accuracy, and weak consistency in traditional processing, and has become the standard equipment for large projects such as high-speed railways and airports. Xuhui (Shandong) Intelligent Equipment Co., Ltd., with modular design, high-precision control, and full-process service capabilities, provides customers with a one-stop solution from equipment selection, installation and debugging to after-sales maintenance, helping projects to achieve cost reduction, efficiency improvement, and quality enhancement. Choosing Xuhui means choosing a high-efficiency, precise, and reliable partner.
