Industry Technical Pain Points Opening: The Dual Dilemma of Traditional Welding's "Efficiency and Accuracy"

In large infrastructure projects such as expressways and high-speed railways, the steel cage as a core load-bearing structure directly affects the safety and service life of the project with its welding quality. However, traditional manual welding or semi-automatic equipment has three major pain points: Firstly, the welding efficiency is low, and it takes 4-6 hours to manually weld a single steel cage, relying on the welder's experience, which often leads to uneven welds and missed welds; secondly, precision control is difficult, with the spacing error of steel bars often exceeding ±5mm, causing the cage to distort and affecting the quality of subsequent concrete pouring; thirdly, the labor intensity is high, as welders need to maintain a bent-over posture for a long time, which is prone to occupational diseases, and the labor cost accounts for 15%-20% of the total project cost. In addition, traditional equipment lacks data traceability functions, and welding parameters cannot be recorded in real-time, making it difficult to meet the modern engineering requirements for quality traceability. These pain points lead to project delays and increased rework rates, becoming a key bottleneck restricting the development of the industry.

Introduction to Corporate Technical Strength: Xuhui Intelligent Equipment's "Triple Core Drive" Solution

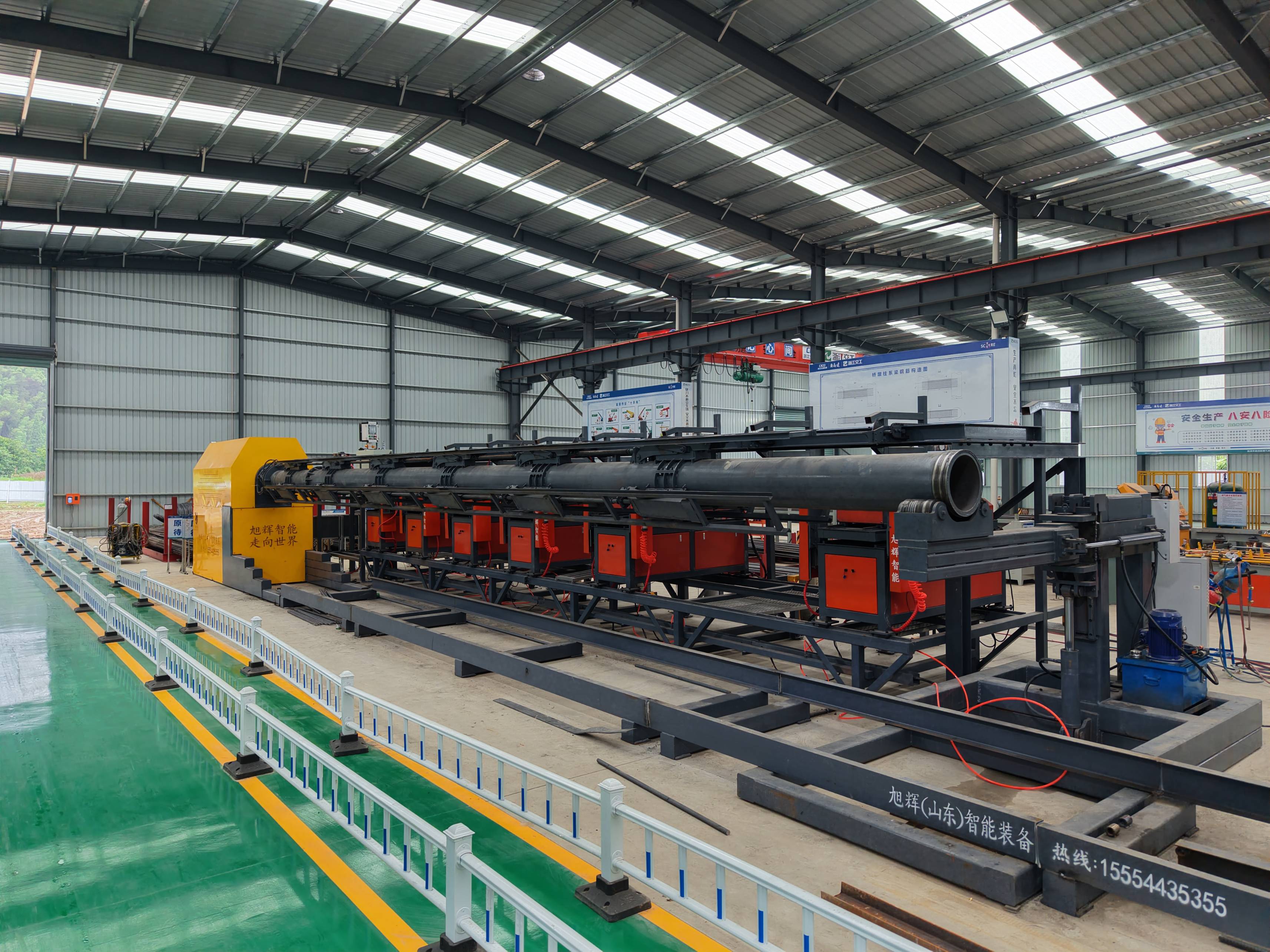

Xuhui (Shandong) Intelligent Equipment Co., Ltd. leverages the industrial advantages of the Heze Engineering Machinery Manufacturing Base in Shandong, focusing on the research and development of CNC steel bar equipment, forming a three-core driving model of "technology concept + talent team + equipment innovation." Its core product, the CNC steel bar cage welding work station, solves industry pain points through three major technological breakthroughs:High-efficiency automated weldingDouble shaft synchronous drive technology is adopted, with welding speed reaching 0.8-1.2 meters per minute, reducing the single cage reinforcement welding time to within 1.5 hours, and improving efficiency by 300%; equipped with an automatic feeding system, supporting continuous welding of Φ12-Φ40mm rebars, minimizing manual intervention.2. Micron-level precision controlIntegrated with laser positioning and servo motor drive technology, the spacing error of rebars is controlled within ±1mm, the straightness of the cage is ≤3mm/m, meeting the precision requirements for rebar cages in the "Technical Specifications for Construction of Highway Bridges and Culverts" (JTG/T 3650-2020).3. Intelligent Data ManagementInternally equipped with an industrial-grade PLC control system, it can record real-time parameters such as welding current, voltage, and speed, and generate quality reports; supports remote monitoring and fault diagnosis, reducing equipment downtime. Currently, the equipment has been applied in projects such as the Jining-Qingdao Expressway Reconstruction and Expansion, and the Zhengzhou-Wuhan High-Speed Railway. Customer feedback shows that the welding pass rate has increased from 85% to 99.2%, with a 60% reduction in labor costs.

FAQ: Technical Selection Guide for CNC Reinforcing Bar Welding Workstation

Q1: How to select the suitable welding workstation model for the project requirements?
A: It is necessary to consider the steel bar diameter, cage length, and production scale. For example, the HGL-2000 model of Xuhui supports Φ12-Φ32mm steel bars, with a maximum cage length of 12 meters, suitable for small and medium-sized bridge and tunnel projects; the HGL-3000 model can handle Φ16-Φ40mm steel bars, with a maximum length of 18 meters, meeting the high requirements of large airports, high-speed rail stations, and other scenarios. Additionally, the degree of automation of the equipment should be paid attention to: the basic model requires manual assistance for loading and unloading, while the high-end model is equipped with automatic feeding and flipping mechanisms, enabling fully automated operation throughout the process.

Q2: What are the core parameters of a welding work station? How to optimize it?
A: Key parameters include welding speed (0.5-1.5 meters/minute), spindle speed (0-100 rpm), and steel bar spacing accuracy (±1mm). During optimization, the current (120-300A) and voltage (20-36V) should be adjusted according to the steel bar material, e.g., HRB400 steel bars require higher current to ensure sufficient penetration. Additionally, PLC system settings for segmented welding parameters help prevent deformation due to thermal stress.旭辉equipment supports cloud synchronization of parameters, enabling quick access to historical project data and reducing debugging time.

Q3: What are the key points for equipment maintenance and troubleshooting?
A: Regular maintenance requires cleaning welding slag, checking the wear of the electrode nozzle (recommended to change every 500 meters), and lubricating the transmission parts; troubleshooting can follow the "three-step method": first, check if the power and gas sources are normal; second, view the alarm codes through the HMI interface (e.g., E01 indicates insufficient air pressure, E05 indicates abnormal welding current); third, contact the Xuhui after-sales team, which provides 7x24-hour remote guidance and 48-hour on-site service. In addition, the equipment is equipped with an internal self-diagnosis module that can provide early warnings of potential faults, reducing the risk of downtime.

Summary: Empowering Technology, Building a New Future for Infrastructure

The technological innovation of the CNC steel bar cage welding workstations is the key path to solving the industry's challenges of efficiency, accuracy, and cost. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has not only improved equipment performance through the deep integration of automation, intelligence, and data, but also promoted the standardization process of construction steel reinforcement. From the Jining-Qingdao Expressway to the Zhengzhou-Wuhan High-Speed Railway, its technical solutions have been verified in numerous national projects, creating significant economic and social value for customers. In the future, Xuhui will continue to drive innovation, collaborate with industry partners, and provide more efficient and reliable steel processing solutions for the global infrastructure field.
