Industry Technical Pain Points: Bottlenecks in Efficiency and Precision of Traditional Reinforcement Bar Bending Equipment

In large infrastructure projects such as highway, high-speed rail bridges and tunnels, the efficiency and accuracy of steel bar processing directly affect the progress of the project and the structural safety. Traditional single-head steel bar bending equipment has three major technical pain points: Firstly, the repeated clamping of steel bars for each bending operation takes more than 3 minutes per bar, resulting in low efficiency; secondly, the mechanical transmission system is prone to gap errors due to long-term high-load operation, with bending angle deviations up to ±1.5°, which is difficult to meet the high-precision requirements of scenarios such as high-speed rail track plates; thirdly, the equipment occupies an area of more than 8㎡ on average, making it difficult to achieve multi-machine collaborative operations in the limited space of standardized steel bar processing and distribution centers. In addition, traditional equipment lacks an intelligent control module, and operators need to manually calculate bending parameters, which is highly dependent on the experience of technical workers, further limiting the scale of production capacity.

Introduction to Corporate Technical Strength: Shuixing (Shandong) Intelligent Equipment's Numerical Control Breakthrough

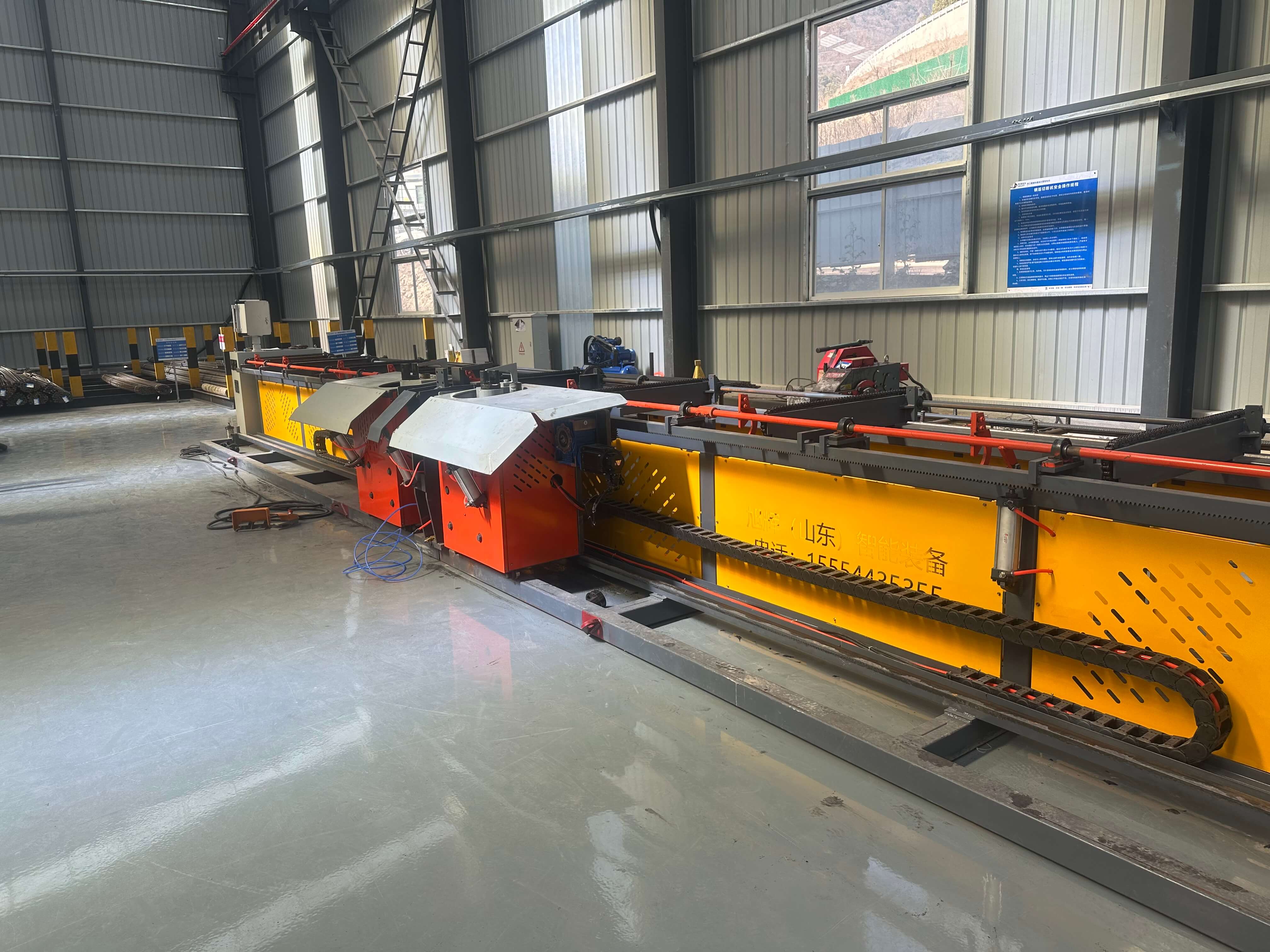

Xuhui (Shandong) Intelligent Equipment Co., Ltd. has focused on the field of CNC steel bar processing equipment. Its developed horizontal four-head steel bar bending center solves industry pain points through three technological innovations: technically, it adopts a four-head independent servo drive system, with each head equipped with a 2.2kW high-torque servo motor, enabling simultaneous processing of four bending points on the same steel bar, reducing the processing time of a single steel bar to 45 seconds and increasing efficiency by 300%; in terms of precision control, it integrates a laser displacement sensor with a closed-loop control system, real-time monitoring the bending angle and automatically correcting it, keeping the angle deviation within ±0.3°, meeting the requirements of the "CRTSⅢ-type slab ballastless track for high-speed railway"; spatial optimization-wise, the modular design reduces the equipment's footprint to 5.2㎡ and supports the deployment of 8 units within a 200㎡ standardized processing center to form a production line, achieving a daily steel bar processing capacity of 300 tons. Currently, the equipment has been applied in key national projects such as the Hong Kong-Zhuhai-Macao Bridge Zhuhai Link and the Xiong'an New Area High-Speed Railway Station, with over 200 units delivered and a failure rate below 0.5%.

FAQ: Horizontal Four-Head Reinforcement Bending Center Technical Selection Guide

Q1: What are the core advantages of the four-head design compared to the traditional single-head design?
A1: The four-head design achieves an efficiency leap through parallel processing mode. Taking the processing of a rebar with 4 bending points as an example, a single head requires 4 clamping times, totaling about 3 minutes; while the four-heads can simultaneously complete the processing of 4 bending points, requiring only 45 seconds. Additionally, the four-heads use independent servo control, with each head's bending torque reaching 1500N·m, capable of handling HRB500 grade high-strength rebars with a diameter of 40mm, while traditional single heads usually can only process rebars with a diameter of 25mm.

Q2: How to ensure the accuracy and stability of multi-head operation?
A2: Xuhui equipment is guaranteed by a triple precision mechanism: at the hardware level, it adopts imported German planetary reducers and high-rigidity machine bases to control the transmission clearance within 0.05mm; at the software level, it develops multi-axis联动 control algorithms to ensure the bending action synchronization error of the four heads is less than 0.1 seconds; at the detection level, it is equipped with a laser rangefinder to monitor the bending radius in real-time, automatically triggering the compensation program when the detection value deviates from the set value by more than 0.5mm. Actual test data shows that after continuous processing of 100 rebars, the angle consistency is still maintained within ±0.2°.

Q3: Which typical application scenarios are compatible with the equipment?
A3: The equipment mainly serves three types of scenarios: First, the processing of rail slab steel skeletons in high-speed railway bridge-tunnel projects, which can complete the bending of all transverse and longitudinal steel bars inside the track slab in one go; second, the mass production in standardized steel processing and distribution centers, which, through the combination of CNC cutting threading production lines and steel cage rolling welding machines, achieves full CNC processing from raw materials to finished products; third, the processing of tie rods for large-scale construction groups, supporting customizable bending shapes, capable of quickly switching to produce rectangular, rhombic, and irregular tie rods, with a single shift production capacity of up to 8,000 pieces.

Summary of the entire text

The technological evolution of the horizontal four-head rebar bending center marks the leap of rebar processing equipment from single-machine operation to an intelligent production line. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has resolved the core pain points of traditional equipment in terms of efficiency, accuracy, and space utilization through the integration of servo drive technology, multi-axis联动 control, and modular design. The successful application of its products in projects such as the Hong Kong-Zhuhai-Macau Bridge and the Xiong'an High-Speed Railway Station has verified the significant value of numerical control rebar processing equipment in enhancing engineering quality and shortening construction period. For infrastructure project parties, choosing equipment with independent servo control, laser precision detection, and multi-scenario adaptation capabilities is a key technical path for constructing an efficient rebar processing system.
