Industry Technical Pain Points: Bottlenecks in Efficiency and Precision of Traditional Reinforcement Bar Bending Equipment

In the field of building steel bar processing, traditional single-head or double-head bending equipment has long faced pain points such as low efficiency and insufficient accuracy. For example, single-head equipment requires frequent adjustment of workpiece positions, allowing only a single angle bending per operation, leading to extended processing cycles; while double-head equipment improves efficiency, it lacks synchronization, prone to bending angle deviations, affecting the overall stability of the steel frame. Moreover, traditional equipment relies on manual operation, demanding high skill levels from workers, and is labor-intensive, making it difficult to meet the demands of standardized and high-efficiency large-scale projects. Statistics show that in a large-scale bridge project, the qualified rate of steel bar bending processed by traditional equipment was only 82%, with a high rework rate of 15%, directly leading to delays in project schedules and increased costs.

Introduction to Corporate Technical Strength: Xiuhui Intelligent Equipment's Research and Development Breakthroughs and Product Advantages

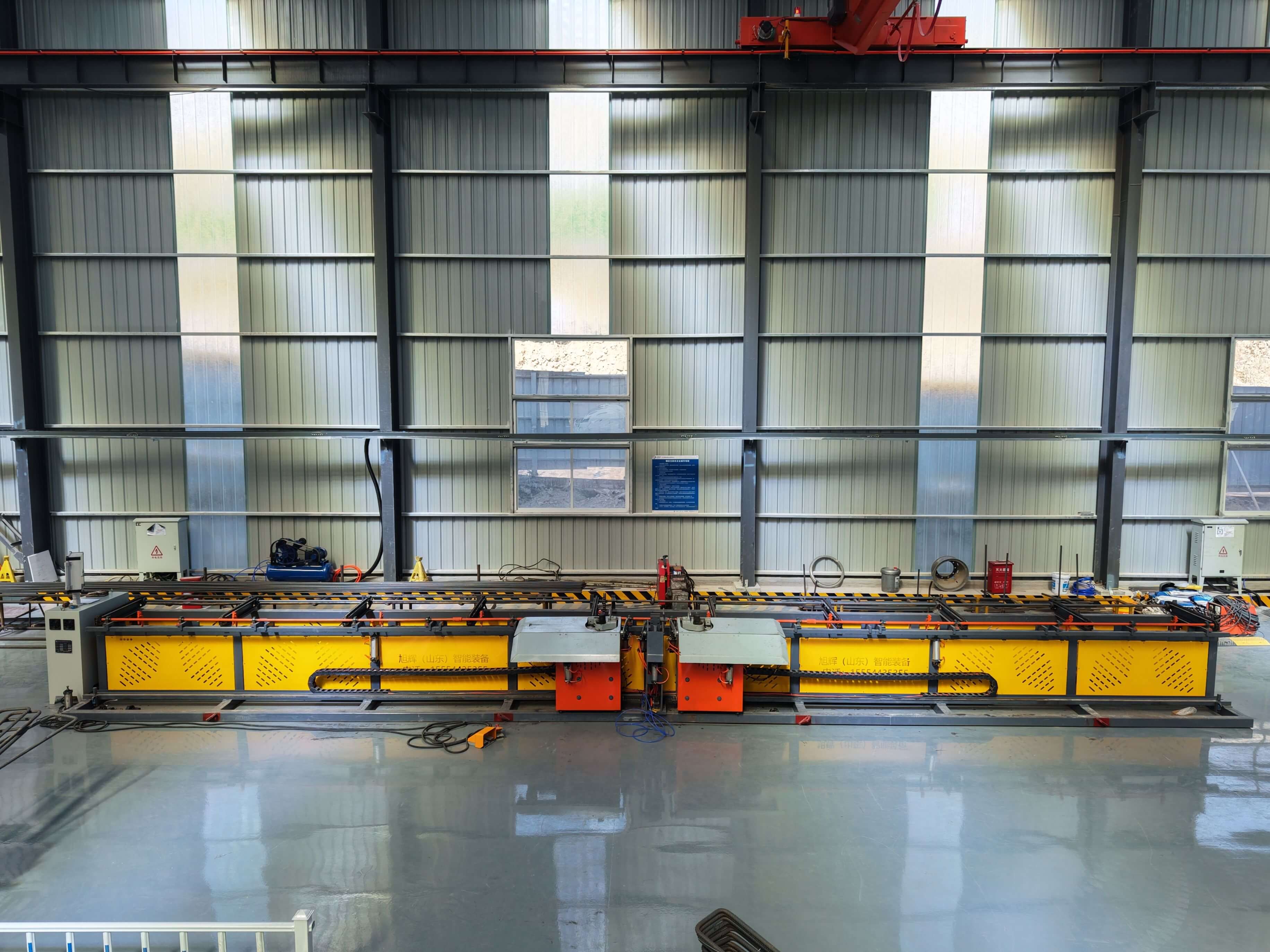

Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in CNC rebar equipment, leveraging the advantages of the machinery and equipment manufacturing base in Heze, Shandong. It has assembled a technical team consisting of experts in mechanical design, electrical control, and materials science, focusing on the research and innovation of horizontal four-head rebar bending centers. Its core products adopt modular design, integrating four independent bending heads, achieving synchronous or asynchronous bending through PLC control systems. A single operation can complete bending tasks at 4 different angles, improving efficiency by 300% compared to traditional equipment. For instance, in a highway project, the Xuhui equipment processed 120 tons in a single day, four times the capacity of traditional equipment, with bending angle accuracy within ±0.5° and a pass rate of 98%.

In terms of technical parameters, the equipment supports Φ6-Φ40mm rebar processing, with a bending speed of up to 180°/s, and the head spacing can be adjusted from 500-2000mm to accommodate the processing needs of different specifications of rebar frameworks. Its innovative points are: 1) driven by servo motors to achieve stepless speed regulation and precise positioning; 2) equipped with an intelligent fault diagnosis system that can monitor equipment status in real-time and issue early warnings; 3) supports remote control and data traceability, meeting the requirements of digital construction management. Currently, Xuhui equipment has served more than 200 key projects across the country, including airports, high-speed rail, large-scale building complexes, etc., with customer feedback indicating that its equipment stability and processing accuracy both reach the leading level in the industry.

FAQ: Horizontal Four-Head Rebar Bending Center Technical Selection Guide

Q1: What are the main differences between horizontal four-head and two-head equipment?
A1: The horizontal four-head equipment, by integrating four independent heads, can process 4 bending points simultaneously, whereas the two-head equipment only supports synchronous bending of 2 points. Taking a steel bar with 4 90° bends as an example, the four-head equipment can complete all the bending in a single positioning, while the two-head equipment requires two positioning steps, reducing efficiency by 50%. Moreover, the head spacing of the four-head equipment is adjustable, catering to the processing needs of steel bars of different lengths, offering greater flexibility.

Q2: How to choose a suitable steel bending center for the project requirements?
A2: The following parameters should be considered: 1) Processing rebar diameter range (e.g., Φ6-Φ40mm); 2) Bending angle accuracy (it is recommended to choose equipment within ±0.5°); 3) Daily processing capacity requirement (e.g., for projects requiring more than 100 tons, high-efficiency models should be selected); 4) Degree of automation (such as whether it supports remote control and data traceability). For example, a bridge and tunnel project requires processing Φ32mm rebar with a daily demand of 150 tons. The customized four-head equipment provided by Xuhui, through optimizing the head power and transmission system, has achieved a daily processing capacity of 180 tons, with a bending angle error of only ±0.3°.

Q3: What are the key points for equipment maintenance and troubleshooting?
A3: Key points for daily maintenance: 1) Regularly clean the steel debris inside the machine head to prevent jamming; 2) Check the wear of the servo motor and transmission belt, and replace them in time; 3) Calibrate the sensor accuracy to ensure accurate bending angle. Common failures such as the machine head not working can first check if the PLC input signal is normal, then investigate if the servo driver is alarming; if there is an error in the bending angle, recalibrate the encoder parameters. Xuhui equipment is equipped with an intelligent diagnosis system that can automatically generate fault codes to guide users in quickly locating problems.

Summary Reference: Standardization Upgrade of Reinforcement Steel Processing Driven by Technology

The technological innovation of the horizontal four-head rebar bending center lies in optimizing the equipment structure, control system, and processing technology to address the pain points of traditional equipment, such as low efficiency, poor accuracy, and reliance on manual labor. Xuhui (Shandong) Intelligent Equipment Co., Ltd. provides an efficient, accurate, and reliable rebar processing solution for the construction industry with its independently developed modular design, servo drive technology, and intelligent diagnostic system. Its products not only reach the leading level in processing efficiency and accuracy but also adapt to modern construction management needs through digital functions, helping projects achieve cost reduction and efficiency improvement. In the future, as the construction industry raises the requirements for standardization and intelligence, Xuhui will continue to drive technological innovation, promoting the development of rebar processing equipment towards higher efficiency, higher precision, and easier maintenance.
