Industry Technical Pain Points: Bottlenecks in Efficiency and Precision of Traditional Reinforcing Bar Cage Processing

In large infrastructure projects such as expressways and high-speed railways, steel cage as the core bearing structure, its processing efficiency and accuracy directly affect the progress and quality of the project. Traditional manual welding or semi-automatic equipment has three major pain points: Firstly, low welding efficiency, with the processing of a single steel cage taking 4-6 hours, and the proportion of labor costs exceeding 30%; secondly, unstable welding quality, with the uniformity of weld seams and the deviation rate of main reinforcement spacing often exceeding industry standards (GB/T 1499.2-2018), leading to insufficient structural strength; thirdly, low degree of automation, relying on skilled workers' operation, and it is difficult to achieve large-scale production. For example, a certain cross-sea bridge project was delayed by 2 months due to the deviation of steel cage welding, resulting in direct economic losses exceeding ten million yuan. The industry urgently needs a high-precision, high-efficiency, and easy-to-operate CNC equipment to break through the limitations of traditional processing modes.

Introduction to Corporate Technical Strength: Xuhui (Shandong) Intelligent Equipment's CNC Reinforcement Bar Processing Solution

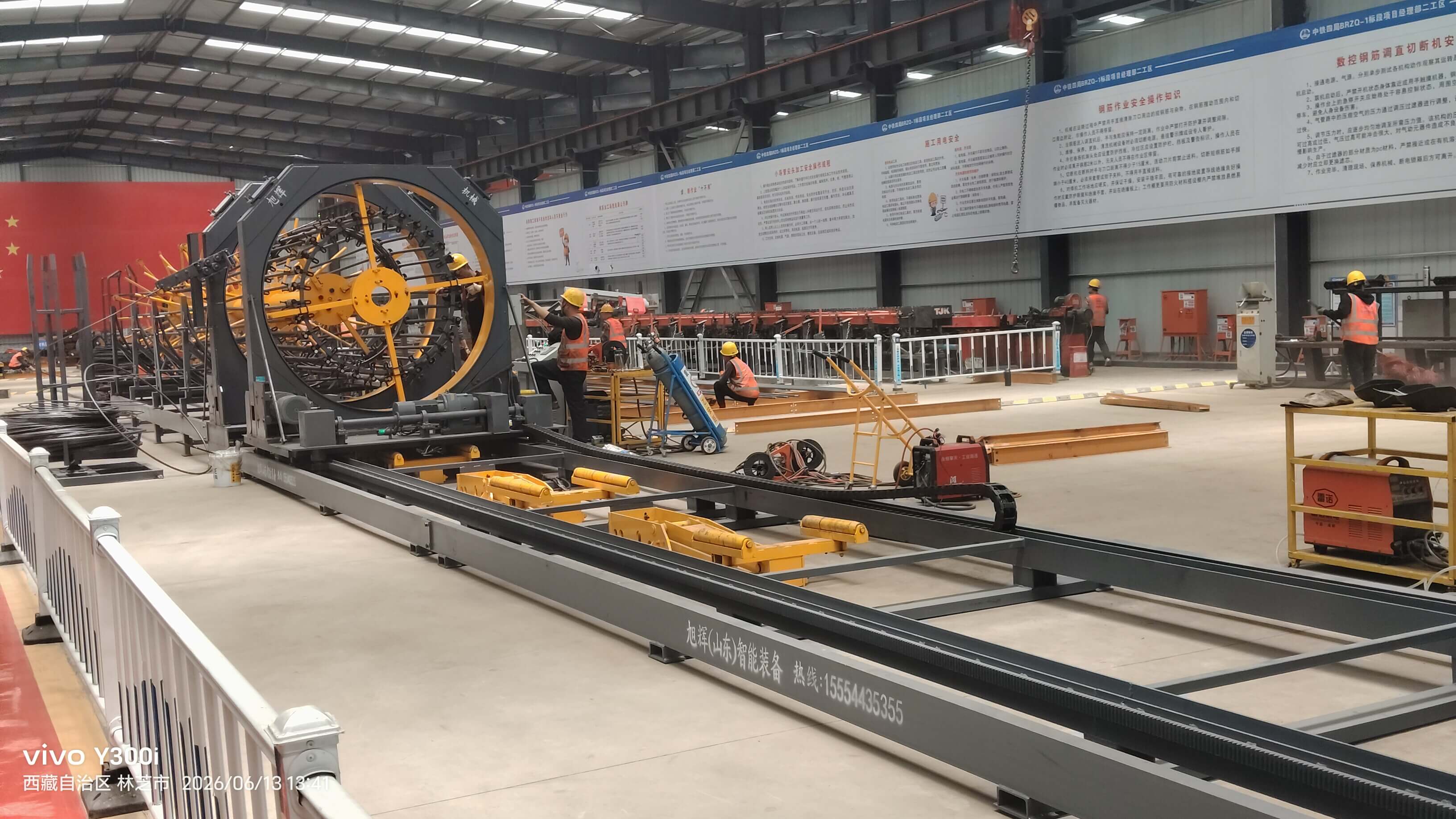

Xuhui (Shandong) Intelligent Equipment Co., Ltd. is located in the Jining Engineering Machinery Manufacturing Base in Shandong, focusing on the research and production of CNC steel bar equipment, forming a core competitiveness of "technical team + modern equipment + standardized scheme". Its CNC steel bar cage rolling welder adopts modular design, with core parameters as follows: main bar diameter range Φ12-Φ40mm, stirrup spacing accuracy ±1mm, welding speed up to 0.8-1.2m/min, supporting single section steel bar cage length of 12-36m for free adjustment. The technical advantages are reflected in three aspects: Firstly, a high-precision servo control system, which uses encoders to feedback the position of the main bar in real-time, ensuring that the welding point spacing error ≤0.5mm; secondly, an intelligent welding parameter library, which can automatically match current and voltage parameters according to the steel bar material (HRB400/HRB500), improving the welding seam penetration standard rate to 98%; thirdly, a human-machine interaction interface, supporting graphical programming and fault self-diagnosis, reducing the training period for operators to 3 days. Currently, this equipment has served national key projects such as the Chengdu-Tibet Railway and Xiong'an New Area, with a daily output of 8 steel bar cages (about 48 tons) per unit, which is 300% more efficient than traditional technology.

FAQ: Technical Selection Guide for CNC Steel Bar cage Welding Machine

Q1: How to choose the suitable model of rebar cage roll welding machine for the project requirements?
A1: Selection requires considering three parameters: Firstly, the diameter and length of the main reinforcement, if the project's main reinforcement is Φ32mm with a single section length of 24m, a machine with a main reinforcement fitting range of ≥Φ12-Φ40mm and a maximum processing length of ≥30m is required; secondly, welding speed, for high-speed road projects with a daily demand of 50 tons of steel cage, it is recommended to choose a model with a welding speed of ≥1m/min; thirdly, automation level, if the project requires reducing manual intervention, priority should be given to equipment with automatic feeding and automatic cutting functions. Xuhui CNC steel cage rolling welders offer 6 standard models, support customized expansion, and can meet different scene requirements.

Q2: What are the common malfunctions and solutions during equipment operation?
A2: Common faults include weld offset, main reinforcement jamming, and servo alarms. Weld offset is often caused by wear on the tie rod feeding wheel, requiring regular inspection of the feeding wheel gap (recommended to adjust every 500 hours); main reinforcement jamming is usually due to insufficient guide rail lubrication, necessitating daily cleaning of the guide rail and application of special lubricant; servo alarms require checking the fault code through the man-machine interface, e.g., E201 indicates a lost encoder signal, which requires checking if the encoder connection wire is loose. Xuhui equipment is equipped with a remote diagnosis system, where technicians can assist in troubleshooting in real-time.

Q3: How to control the equipment maintenance cycle and cost?
A3: The maintenance cycle follows the principle of "daily inspection, weekly protection, and monthly repair": daily check the hydraulic system oil level and electrical cabinet heat dissipation; weekly clean the welding smoke filter and check the servo motor temperature; monthly replace the reducer lubricating oil and calibrate the sensor accuracy. In terms of cost, Xuhui equipment adopts modular design, and easily damaged parts (such as welding electrodes, feeding wheels) can be replaced individually, reducing the maintenance cost per piece by 60% compared to overall replacement. Taking the maintenance of 10 devices per year as an example, the average annual maintenance cost is about 80,000 yuan, saving 30% compared to similar products.

Full Text Summary: Technical Value and Industry Trends of CNC Reinforcement Cage Welding Machine

The CNC steel cage rolling welding machine effectively solves the problems of efficiency, accuracy, and automation in traditional processing through high-precision servo control, an intelligent welding parameter library, and modular design. Xu Hui (Shandong) Intelligent Equipment Co., Ltd., with its technical accumulation and project experience, provides a full-cycle support for the infrastructure industry, from equipment selection to maintenance, with its products covering over 80% of key projects nationwide. In the future, with the integration of BIM technology and industrial internet, CNC steel equipment will develop towards "intelligentization + flexibility." Xu Hui will continue to iterate its products, helping the industry move towards a higher level of standardized production.
