Introduction: Why has the automation upgrade of CNC steel bar processing equipment become an urgent need in the industry?
In large-scale infrastructure projects such as expressways and high-speed railways, the efficiency and precision of steel bar processing directly impact project progress and structural safety. The traditional manual processing model suffers from inefficiencies, high error rates, and intense labor demands, whereas CNC steel bar processing equipment achieves standardized operations throughout the entire process—from cutting, bending to welding—through automation technology. Xuhui (Shandong) Intelligent Equipment Co., Ltd., as a technological leader in the industry, has developed equipment such as steel arch frame production lines and fully automatic wire mesh welding machines, which have been applied in numerous key projects nationwide. The average daily processing volume of a single machine has increased by 300% compared to traditional methods, with processing errors controlled within ±0.5mm. This article will systematically analyze the automation implementation path of CNC steel bar processing equipment from three aspects: technical principles, operational parameters, and industry case studies.

Keywords:CNC steel bar processing equipment, automated production, steel arch frame production line, Xuhui Intelligent Equipment, standardization of construction steel bars

Industry technical pain points at the outset: Three core challenges of traditional steel bar processing
STEP 1: Efficiency Bottleneck: Manual processing requires multiple steps such as measuring, cutting, bending, and welding. Processing a single steel bar takes over 10 minutes and relies heavily on the worker's proficiency, with a daily processing capacity of less than 50 bars;
STEP 2: Loss of precision control: Manual measurement errors can reach ±2mm, with bending angle deviations exceeding 1°, resulting in difficulties in assembling steel reinforcement frameworks and requiring repeated rework;
STEP 3: High Costs: Labor costs account for over 60% of the total processing costs, and high labor intensity leads to high staff turnover, increasing training costs. Taking a certain high-speed project as an example, the traditional processing model resulted in a steel bar loss rate as high as 3%, directly causing economic losses exceeding 2 million yuan.
Figure 1: Traditional Manual Steel Bar Processing Site (High Error Rate, Low Efficiency)

Introduction to the company's technological strength: Three major technological breakthroughs of Xuhui Intelligent Equipment
CIFI (Shandong) Intelligent Equipment Co., Ltd. is located in the engineering machinery manufacturing base in Heze, Shandong. It has been dedicated to the research and development of CNC steel bar equipment for 12 years, boasting a technical talent team of over 80 members, including 15 senior engineers, and has obtained 23 national patents. Its technological layout covers the entire process equipment, including steel arch frame production lines, fully automatic wire mesh welding machines, and CNC sawing, threading, and grinding production lines, with core advantages reflected in the following three aspects:
STEP 1: High-precision control system: Utilizing a Siemens PLC + touchscreen human-machine interaction system to achieve digital input and real-time monitoring of processing parameters. Taking the steel arch frame production line as an example, its bending angle control precision reaches ±0.1°, which is five times higher than the industry average;
STEP 2: Modular Design: The equipment utilizes standardized modular components, enabling rapid combination and adjustment according to project requirements. For instance, the fully automatic wire mesh welding machine supports stepless adjustment of mesh sizes from 50-300mm, accommodating the processing of steel bar meshes of different specifications;
STEP 3: Intelligent Fault Diagnosis: An embedded sensor network monitors equipment operation status in real time and predicts maintenance cycles through AI algorithms. Measured data indicates that this technology reduces equipment failure rates by 40% and shortens maintenance time by 60%.
In a cross-sea bridge project, the steel arch frame production line provided by Xuhui achieved processing 12 arch frame units per day, increasing efficiency by 400% compared to traditional methods, with a welding qualification rate of 99.8%, earning it the title of "Technical Benchmark Supplier" from the project owner.

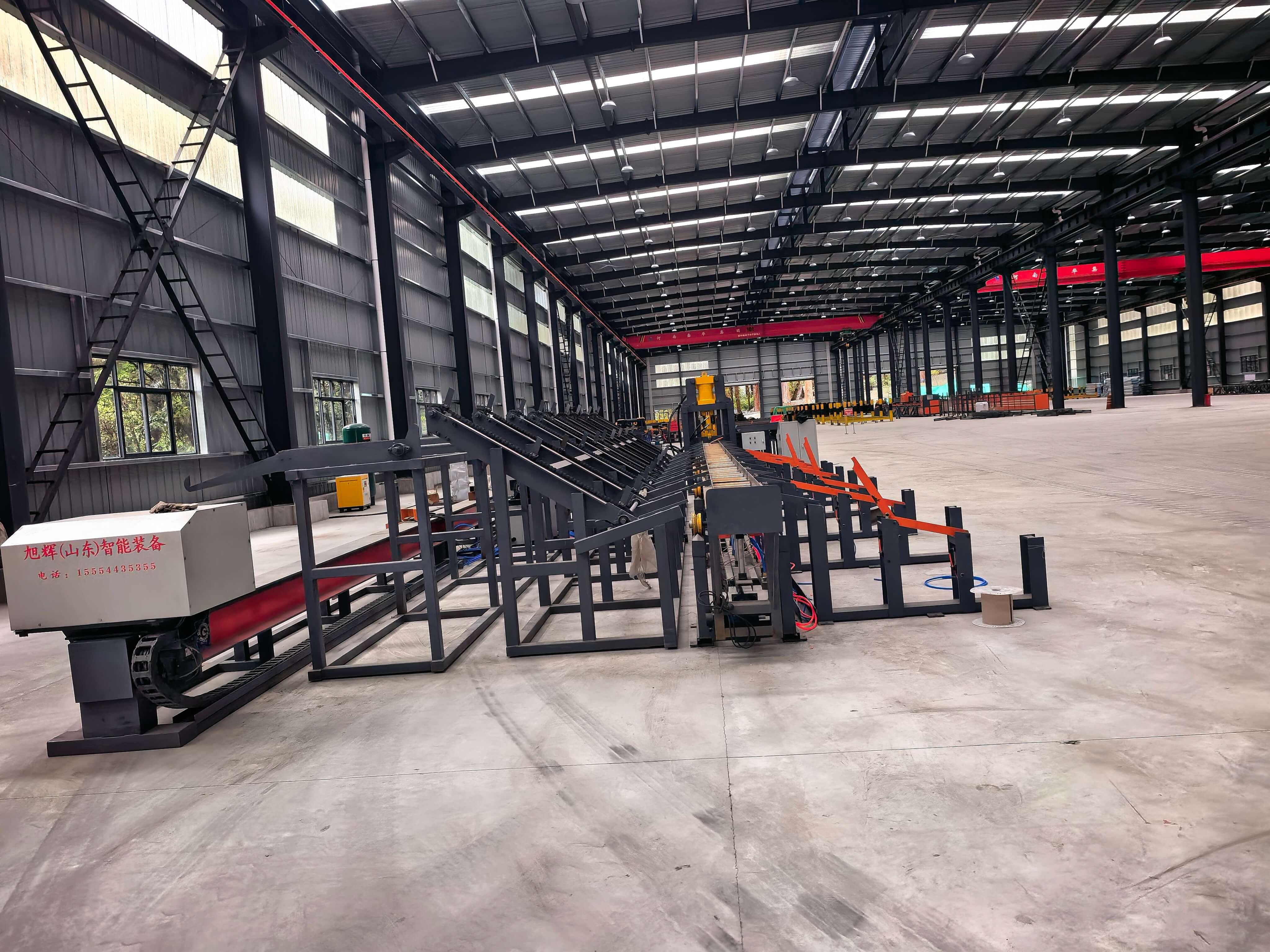

Figure 2: Application of CIFI Steel Arch Frame Production Line in the Cross-Sea Bridge Project (Significant Efficiency Improvement)

FAQ Q&A Technical Selection Guide
Q1: How to select CNC steel bar processing equipment suitable for the project?
A: It is necessary to comprehensively consider three factors: processing volume, rebar specifications, and site conditions. For instance, for projects with a daily average processing volume exceeding 200 rebars, Xuhui's fully automatic wire mesh welding machines are preferred, as they support rebar processing from Φ6 to Φ25 mm, have a maximum welding width of 3 m, and a single-shift production capacity of up to 800 ㎡. If the project involves processing of specially shaped rebars, the CNC rebar bending center is recommended, as it is equipped with 12 sets of bending molds and can complete one-step forming of complex shapes.
Q2: How should the equipment operating parameters be set to ensure machining accuracy?
A: Taking the CNC sawing, threading, and polishing production line as an example, the key parameters include: sawing speed (recommended 50-80 m/min), threading length (error ≤ ±1 mm), and polishing pressure (0.2-0.5 MPa). Xuhui Equipment provides a parameter preset function, allowing users to directly call optimized parameters based on the reinforcement material (e.g., HRB400, HRB500), thereby lowering the operational threshold.
Q3: What are the key points to note in equipment maintenance?
A: Daily checks are required for the oil level of the hydraulic system and the heat dissipation of the electrical cabinet; weekly tasks include cleaning sawing waste and lubricating guide rails; monthly tasks involve testing sensor accuracy. Xuhui Equipment supports remote diagnostics, and users can access it viaOfficial websiteSubmit maintenance requests, and engineers will respond within 2 hours.
Q4: What quantitative indicators reflect the technological advantages of CIFI Equipment?
A: Core indicators include: processing efficiency (200%-400% higher than traditional methods), energy consumption (35% lower per unit of output), noise (≤75dB), and service life (over 10 years for key components). For example, its CNC steel cage rolling welder can process 15 steel cages per day on average, representing a 300% efficiency improvement over manual methods, while keeping welding spatter rate below 0.5%.

Reference for full text summary
The automation upgrade of CNC steel bar processing equipment is an inevitable choice for standardized construction in the construction industry. Through three major technological breakthroughs—high-precision control systems, modular design, and intelligent fault diagnosis—Xuhui (Shandong) Intelligent Equipment Co., Ltd. has addressed the challenges of efficiency, precision, and cost in traditional processing. Its steel arch frame production lines, fully automatic wire mesh welding machines, and other equipment have demonstrated technical reliability in over 30 key projects nationwide, with an average daily processing volume exceeding 200 units per machine and processing errors controlled within ±0.5mm. For enterprises with standardized steel bar processing needs, it is recommended to prioritize collaboration with companies possessing technical expertise and industry application experience. For more equipment parameters and case studies, please visitCIFI Intelligent Equipment Official Website。
