Introduction: How can the efficiency and precision of CNC steel bar processing equipment achieve breakthroughs?
In large-scale infrastructure projects such as expressways and high-speed railways, the efficiency and precision of steel bar processing directly affect project progress and structural safety. Traditional manual processing methods suffer from low efficiency, large errors, and high labor intensity, whereas CNC steel bar processing equipment, through automated control and precision mechanical structures, enables efficient and precise processing of steel bars in procedures such as bending, welding, and cutting. This article will analyze the technical advantages and operational key points of CNC steel bar processing equipment from three dimensions—technical principles, equipment selection, and practical operation steps—incorporating typical application cases from Xuhui (Shandong) Intelligent Equipment Co., Ltd.

Keywords: CNC steel bar processing equipment, efficient processing, precision control, Xuhui Intelligent Equipment

Opening on Industry Technical Pain Points: Three Major Bottlenecks of Traditional Processing Methods
STEP 1: Inefficiency: Manual processing requires multiple measurements and adjustments, with the processing time for a single steel bar reaching 3-5 minutes. In contrast, CNC equipment can achieve batch processing through preset programs, reducing the processing time for a single bar to within 30 seconds.
STEP 2: Insufficient precision: Manual operations rely on experience, with bending angle errors reaching up to ±2°, whereas CNC equipment, driven by servo motors, controls angle errors within ±0.5°, meeting the high-precision requirements of high-speed rail track slabs and similar applications.
STEP 3: High costs: Manual processing requires the collaboration of 3-5 workers and has a scrap rate as high as 5%, whereas CNC equipment enables one worker to operate multiple machines, reducing the scrap rate to below 0.5%.
Taking a high-speed railway project as an example, the traditional processing method required 20 workers and took 15 days to complete the processing of 1,000 tons of steel bars, whereas with the adoption of Xuhui CNC Steel Bar Bending Center, only 5 workers and 7 days were needed, resulting in a 60% increase in efficiency and a 35% reduction in costs.

Introduction to the company's technological strength: Three core technological advantages of Xuhui Intelligent Equipment
CIFI (Shandong) Intelligent Equipment Co., Ltd. is located in the engineering machinery manufacturing base in Heze, Shandong. It has been dedicated to the research and development, production, and sales of CNC steel bar equipment for 12 years, boasting a technical talent team of over 50 members, a modern production workshop covering 20,000 square meters, and an annual production capacity of 2,000 sets of equipment.
Technical Advantage 1: Full-process automated control
The company's independently developed equipment, such as steel arch frame production lines and steel reinforcement cage welding workstations, integrate PLC control systems with industrial robots to achieve full-process automation of steel bar loading, bending, welding, and unloading. For example, the fully automatic small conduit production line, driven by servo motors, achieves a processing speed of 120 pieces per hour, which is three times faster than traditional equipment.
Technical Advantage 2: High-precision mechanical structure design
The core components of the equipment are made of high-strength alloy steel, reinforced through heat treatment processes, with a bending die lifespan exceeding 100,000 cycles. The CNC steel cage rolling welder employs dual-spindle synchronous drive technology, controlling the reinforcement spacing error within ±1mm to meet the high safety standards required for projects such as nuclear power plants.
Technical Advantage 3: Intelligent Fault Diagnosis System
The equipment is equipped with a built-in sensor network that can monitor parameters such as motor temperature and hydraulic pressure in real time, and display fault codes via the HMI screen. For example, when the CNC sawing, threading, and grinding production line detects saw blade wear, it will automatically shut down and prompt for replacement to avoid fluctuations in processing quality.

For more information, please visit the official website:www.xuhuiintelligenttech.com

FAQ Q&A Guide to Technical Selection: How to Select CNC Steel Bar Processing Equipment?
Q1: How to select equipment models based on project scale?
A: For small-scale projects (annual processing capacity < 5,000 tons), a single piece of equipment can be selected, such as a CNC steel bar bending center (processing range φ6-φ40mm); for large-scale projects (annual processing capacity > 20,000 tons), it is recommended to configure a combination of a steel arch frame production line and a steel reinforcement cage welding workstation to achieve parallel processing of multiple processes.
Q2: How to set the equipment operation parameters?

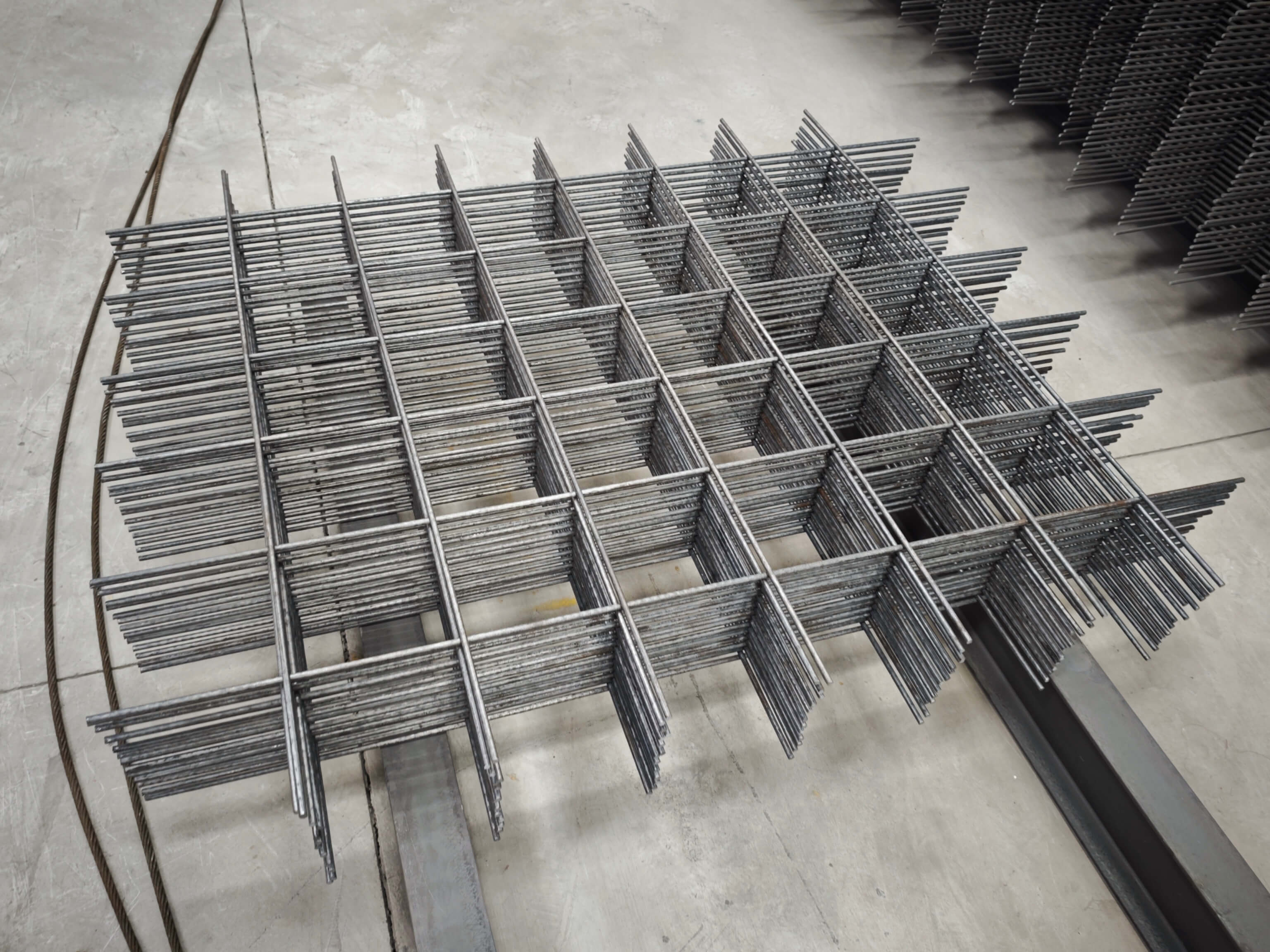

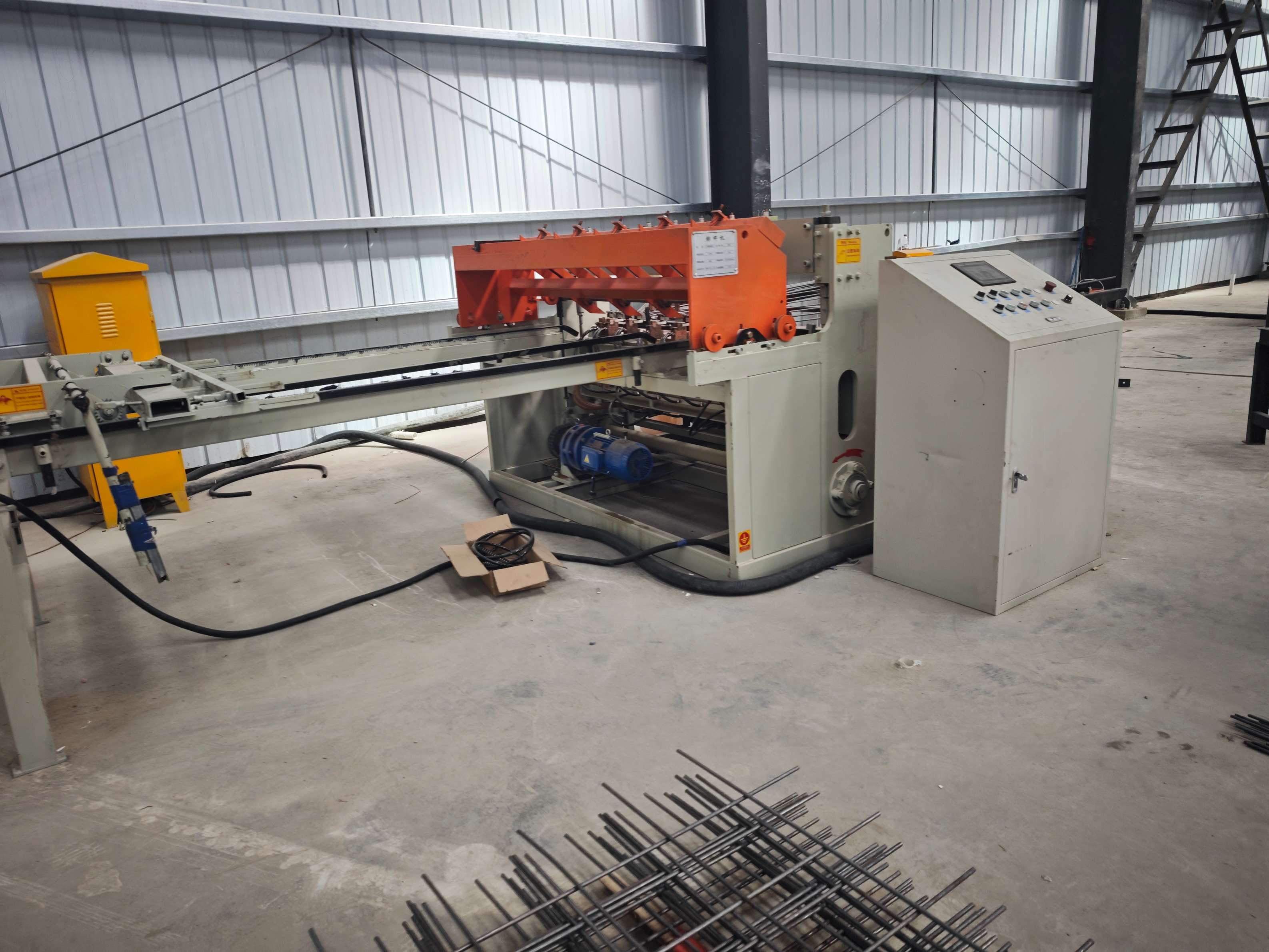

A: Taking the fully automatic wire mesh welding machine production line as an example, the following parameters need to be set:
- Welding current: Adjust according to the diameter of the steel bar (φ6mm: 800-1000A; φ12mm: 1200-1500A)
- Welding time: 0.2-0.5 seconds (adjustable according to the material of the steel bar)
- Mesh spacing: 50-300 mm (adjustable via servo motor drive)
Q3: How is the equipment maintenance cycle determined?
A: Daily maintenance: Clean oil stains on the equipment surface daily and check the hydraulic oil level;
Periodic maintenance: Replace hydraulic oil every 500 hours and inspect servo motor bearings every 1000 hours;
Overhaul and maintenance: Replace core driving components such as reducers and chains every 5,000 hours.
Technical Case Study: Application Record of an Airport Expansion Project
Project requirements: Process φ25mm steel reinforcement cages with a length of 12m, requiring 200 units per day.
Equipment Selection: Xuhui CNC Steel Reinforcement Cage Rolling Welder (Model XH-GL-3000), equipped with a dual-spindle drive system, with a maximum processing length of 15m and a precision of ±1mm for reinforcement bar spacing.
Implementation effect: Through preset procedures, the equipment automatically completes the entire process of steel bar loading, winding, welding, and cutting, achieving a daily processing volume of 220 units, exceeding the target by 10%; labor costs have been reduced from 8 workers per shift to 3 workers per shift, and the defect rate has decreased from 3% to 0.3%.

Reference for Full-text Summary: Core Value and Selection Suggestions for CNC Steel Bar Processing Equipment
CNC steel bar processing equipment, through three major technologies of automated control, high-precision mechanical structure, and intelligent fault diagnosis, can significantly enhance the efficiency and precision of steel bar processing while reducing labor costs and scrap rates. Rising Sun (Shandong) Intelligent Equipment Co., Ltd., leveraging 12 years of technological accumulation, offers a full range of products from single machines to complete production line solutions, serving over 300 key projects such as expressways and high-speed railways, with its equipment stability and processing precision consistently recognized by customers.
Model selection suggestions:
STEP 1: Clarify project scale and processing requirements (rebar diameter, length, and daily processing volume);
STEP 2: Select equipment configuration based on the budget (basic/intelligent/customized);
STEP 3: Give priority to suppliers that offer free training and 24-hour after-sales response.
