Introduction: Technological Innovation of CNC Steel Bar Processing Equipment and Industry Demands

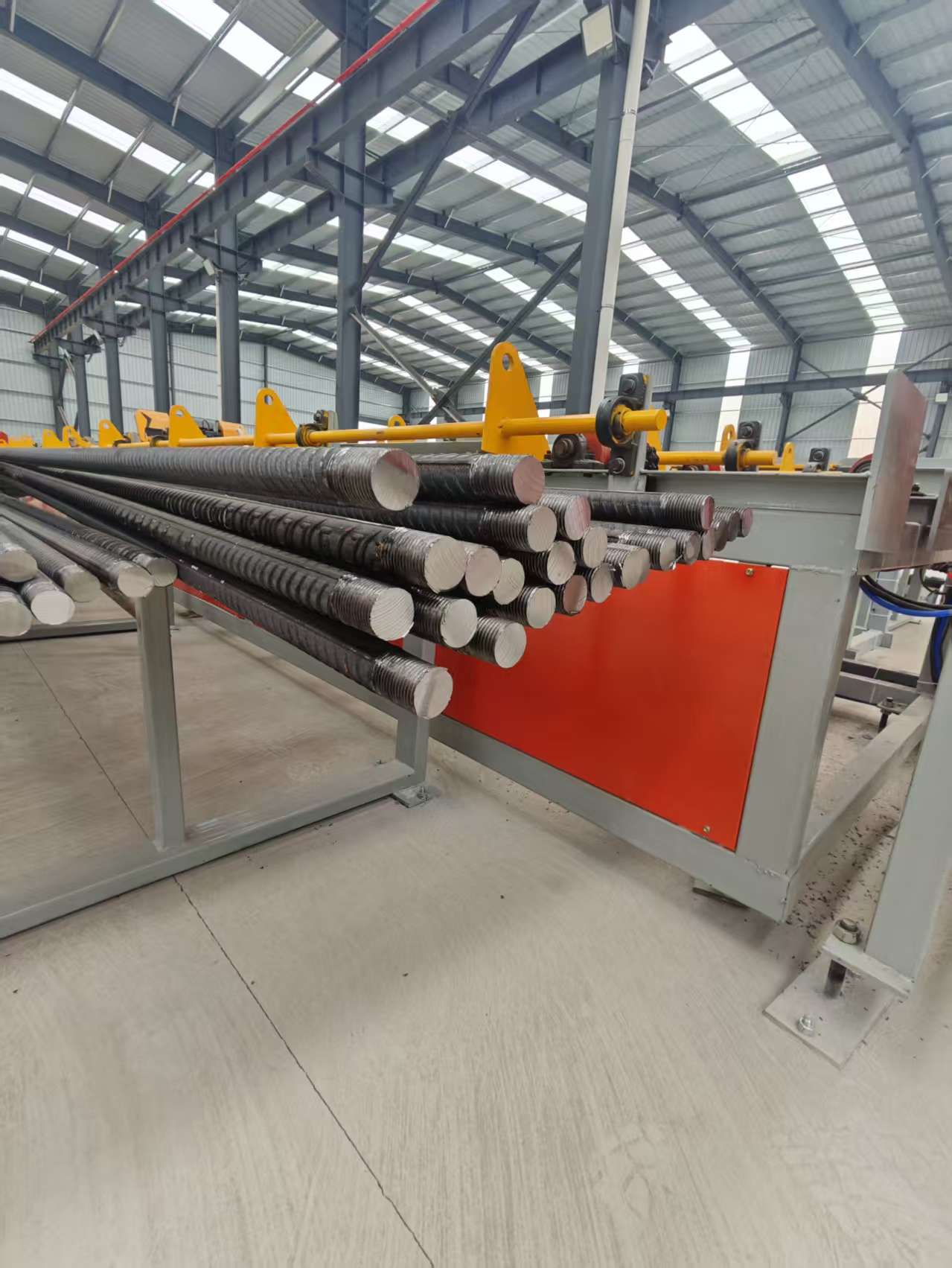

Against the backdrop of the architectural industry's transition towards intelligence and standardization, the efficiency and precision of steel bar processing directly impact project progress and quality. Traditional manual processing methods suffer from issues such as low efficiency, significant errors, and numerous safety hazards, whereas CNC steel bar processing equipment achieves efficient coordination in processes like bending, welding, and cutting of steel bars through automated control and precision mechanical design. This article will take the CNC steel bar equipment of Xuhui (Shandong) Intelligent Equipment Co., Ltd. as an example to analyze its technical principles, application scenarios, and selection guidelines, providing technical references for construction enterprises.

Keywords: CNC steel bar processing equipment; automated production; steel arch frame production line; steel reinforcement cage welding workstation; Xuhui Intelligent Equipment

Industry Technical Pain Points at the Beginning: Efficiency and Precision Bottlenecks in Traditional Steel Bar Processing
Traditional steel bar processing relies on manual operations and has three core pain points:
STEP 1: InefficiencyThe speed of manually bending steel bars is about 5-8 bars per minute, and molds need frequent adjustment, with a single-shift production capacity of less than 300 bars; in contrast, the CNC steel bar bending center, driven by servo motors, can achieve a bending speed of 30-50 bars per minute, increasing the single-shift production capacity to over 2000 bars.
STEP 2: Insufficient accuracyManual processing errors can reach ±5mm, resulting in non-compliance of the lap splice length of steel bars and affecting structural safety; CNC equipment employs a closed-loop control system, with bending angle errors controlled within ±0.5° and length errors ≤ ±1mm.
STEP 3: Numerous safety hazardsManual operation requires close contact with machinery, making it prone to accidents such as pinching and cutting injuries; automated equipment achieves dual protection through safety light curtains and emergency stop buttons, reducing the accident rate by over 90%.
Taking a certain expressway project as an example, the traditional processing method requires 20 workers and 10 days to complete the processing of 100 tons of steel bars, whereas after adopting the Xuhui CNC steel cage rolling welding machine, only 5 workers and 3 days are needed, with the defect rate dropping from 8% to 1.5%.

Introduction to the company's technological strength: CIFI Intelligent Equipment's CNC steel bar solutions
CIFI (Shandong) Intelligent Equipment Co., Ltd., located in Heze, Shandong, is an enterprise integrating the research and development, production, and sales of CNC steel bar equipment. Leveraging a team of technical professionals and modern processing equipment, the company has formed a product matrix covering the entire steel bar processing workflow, including six major categories of equipment such as steel arch frame production lines, steel cage welding workstations, and fully automatic small conduit production lines, serving major projects like expressways, high-speed railways, and airports.
Analysis of Core Strengths:
STEP 1: Modular DesignThe equipment adopts standardized modules. For instance, the main reinforcement drive module and winding module of the reinforcing cage rolling welding machine can be quickly replaced, accommodating steel bar processing with diameters ranging from 12 to 50 mm, with a model changeover time of ≤30 minutes.
STEP 2: Intelligent ControlThrough the integration of PLC and touch screen, one-click parameter input and automatic compensation are achieved. For example, the fully automatic wire mesh welding machine production line can store 20 sets of welding parameters, eliminating the need for re-adjustment when switching products and improving operational efficiency by 40%.
STEP 3: High-precision transmissionKey components adopt imported servo motors and planetary reducers, with a transmission efficiency of over 95%. Taking the CNC sawing, threading, and grinding production line as an example, the sawing speed can reach 120 times per minute, and the threading accuracy meets the GB/T 196-2003 standard.

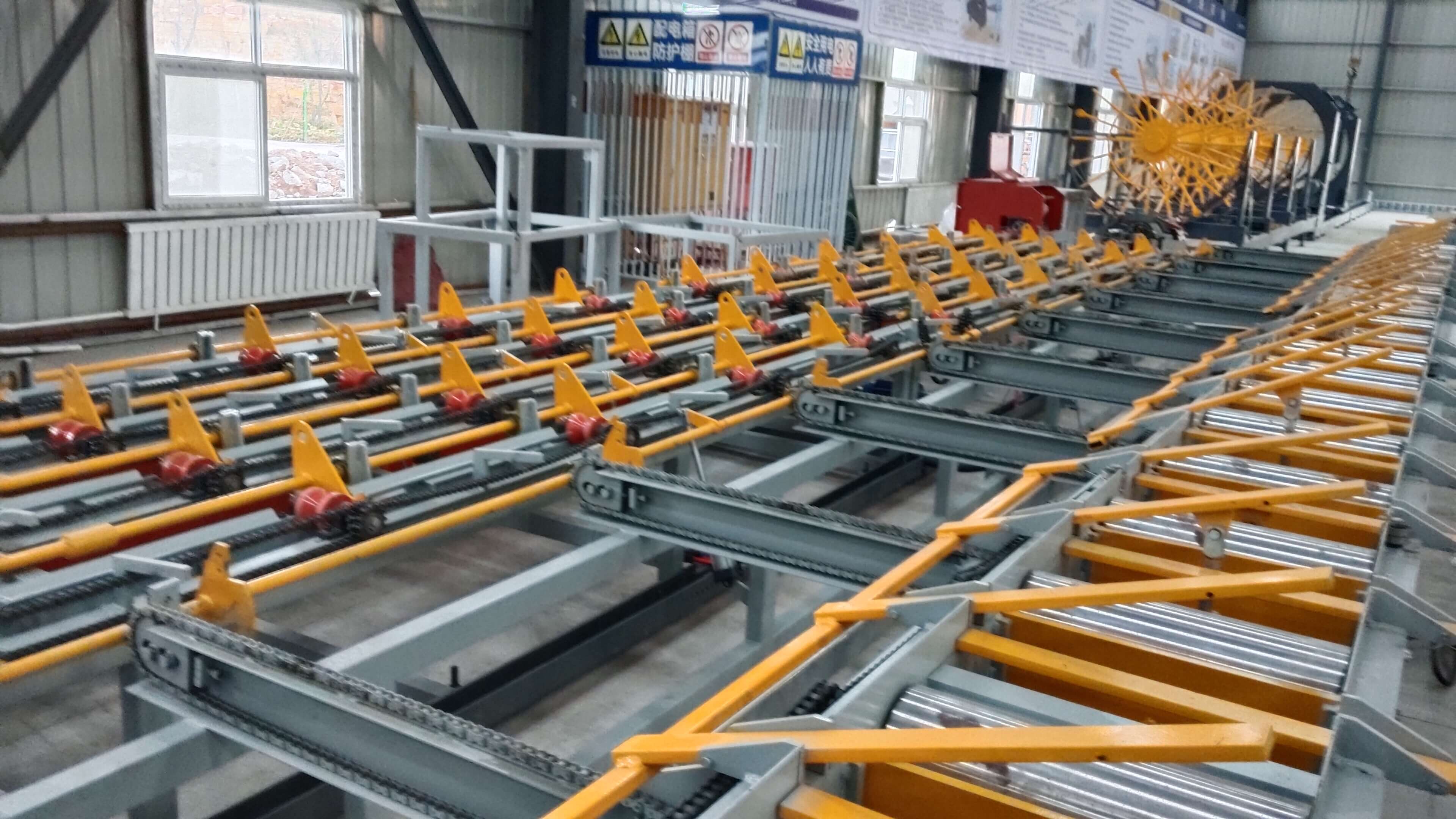

Example of technical parameters:
- Steel arch frame production line: processing range Φ20-50mm, bending radius ≥150mm, single-shift production capacity of 80 frames;
- Reinforcement cage welding workstation: Main reinforcement spacing error ≤ ±1mm, winding speed adjustable from 0 to 30 rpm;
- Fully automatic small conduit production line: punching accuracy of ±0.2mm, cutting length error ≤ ±0.5mm.

FAQ: A Guide to Q&A Technical Selection
Q1: How to select steel bar processing equipment suitable for the project?
A: It is necessary to comprehensively consider processing volume, rebar specifications, and site conditions. For example, small projects with a daily processing volume of less than 50 tons can opt for a CNC rebar bending center (with a unit price of approximately 150,000 to 250,000 yuan); while large projects with a daily processing volume exceeding 200 tons require a combination of a steel arch frame production line and a rebar cage welding workstation (with a total investment of approximately 800,000 to 1,200,000 yuan).
Q2: What is the difference in the return on investment cycle between CNC equipment and traditional equipment?
A: Taking Xuhui's CNC steel reinforcement cage rolling welder as an example, the equipment costs approximately 450,000 yuan. With labor costs calculated at 3,000 yuan per person per month, the traditional method requires 10 people, resulting in monthly costs of 30,000 yuan, whereas the automated method requires only 3 people, with monthly costs of 9,000 yuan, saving 21,000 yuan per month. Based on 300 working days per year, the equipment investment can be recovered in approximately 1.8 years.
Q3: What are the precautions for equipment maintenance?
A: Regularly inspect the servo motor temperature (≤70℃), lubricant level (replace every 500 hours), and the sealing performance of the electrical cabinet (dust-proof level must reach IP54). Xuhui provides a 2-year warranty and lifelong maintenance services, responding to fault reports within 48 hours.
Reference for detection indicators:
- Bending angle: Measured with an angle meter, with an error ≤ ±0.5°;
- Welding strength: It is tested using a tensile testing machine, with the tensile strength of the weld joint ≥ 80% of the strength of the base metal of the reinforcing bar;
- Equipment noise: ≤85 dB under operating conditions (compliant with GB/T 14259-1993 standard).

Reference for Full-text Summary: Future Trends of CNC Steel Bar Processing Equipment
As the construction industry's demands for efficiency and precision continue to rise, CNC steel bar processing equipment is evolving towards intelligence and integration. Xuhui (Shandong) Intelligent Equipment Co., Ltd., through continuous technological innovation, has achieved linkage between equipment and BIM models, enabling automatic generation of processing parameters and reducing manual intervention. In the future, the company will continue to delve deeper into the field of CNC steel bar processing, contributing to industry upgrades with higher-quality products and services. For more information, please visit the official website:www.xuhuiintelligenttech.com
