Introduction: The Automation Revolution in Steel Arch Frame Processing
In large-scale infrastructure projects such as expressways and high-speed railways, steel arch frames serve as critical supporting structures, with their processing accuracy and efficiency directly influencing project progress and quality. Traditional manual processing methods suffer from issues such as low efficiency, significant errors, and numerous safety hazards, making the introduction of automated production lines an inevitable choice for industry transformation. Xuhui (Shandong) Intelligent Equipment Co., Ltd., through its steel arch frame production line, employs intelligent control and modular design to achieve full-process automation from raw material feeding to finished product forming, providing the construction industry with an efficient and precise steel bar processing solution. For more information, please visit the official website:www.xuhuiintelligenttech.com

Keywords: steel arch frame production line, automated processing, Xuhui Intelligent Equipment, CNC steel bar equipment

Opening on Industry's Technological Pain Points: Limitations of Traditional Processing Models
The processing of traditional steel arch frames relies on manual operations and has three core pain points: firstly, low efficiency, with a single piece requiring over 30 minutes of processing time and necessitating collaboration among multiple workers; secondly, insufficient precision, as manual measurement and cutting errors can reach ±5mm, making arch frame assembly difficult; thirdly, numerous safety hazards, with mechanical injuries prone to occur during the handling and cutting of heavy steel bars. Additionally, rising labor costs further compress corporate profit margins. According to industry research, steel arch frame processing plants using traditional techniques have annual labor costs accounting for as high as 40% of total expenses, with product qualification rates only maintained at around 85%. How to break through the dual bottlenecks of efficiency and precision has become a pressing technological challenge for the industry.

Introduction to the company's technological capabilities: Automation solutions from Xuhui Intelligent Equipment
CIFI (Shandong) Intelligent Equipment Co., Ltd., located in Heze, Shandong—China's engineering machinery manufacturing base—is a technology-oriented enterprise integrating the research and development, production, and sales of CNC steel bar equipment. Guided by the core concept of "standardization in construction steel bar operations," the company has established a technical team composed of experts in mechanical design, electrical control, software development, and other fields, and is equipped with modern steel bar processing equipment to provide customers with full-process services ranging from solution design to equipment installation.

STEP 1: Technical Principles and Architectural Design

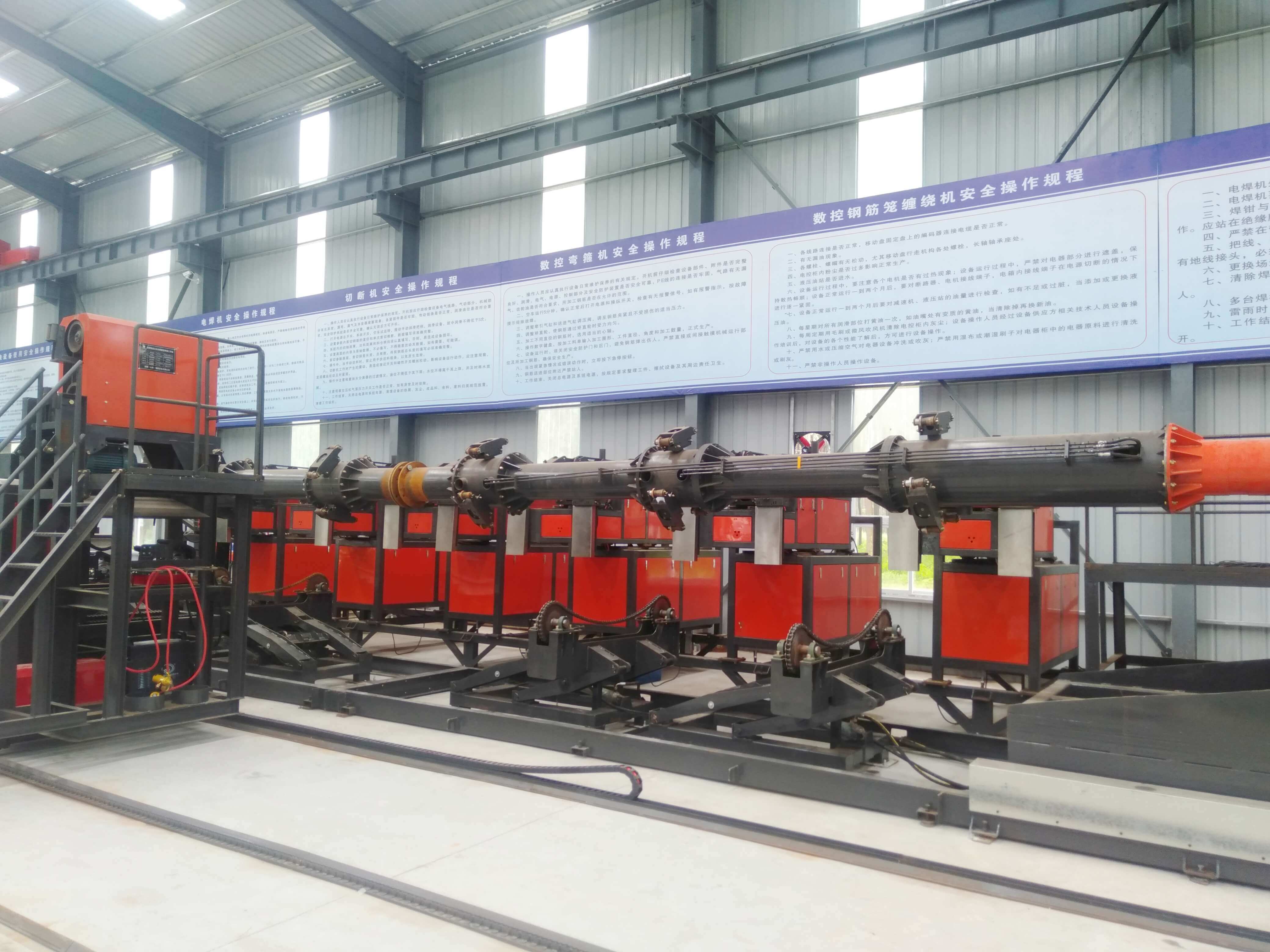

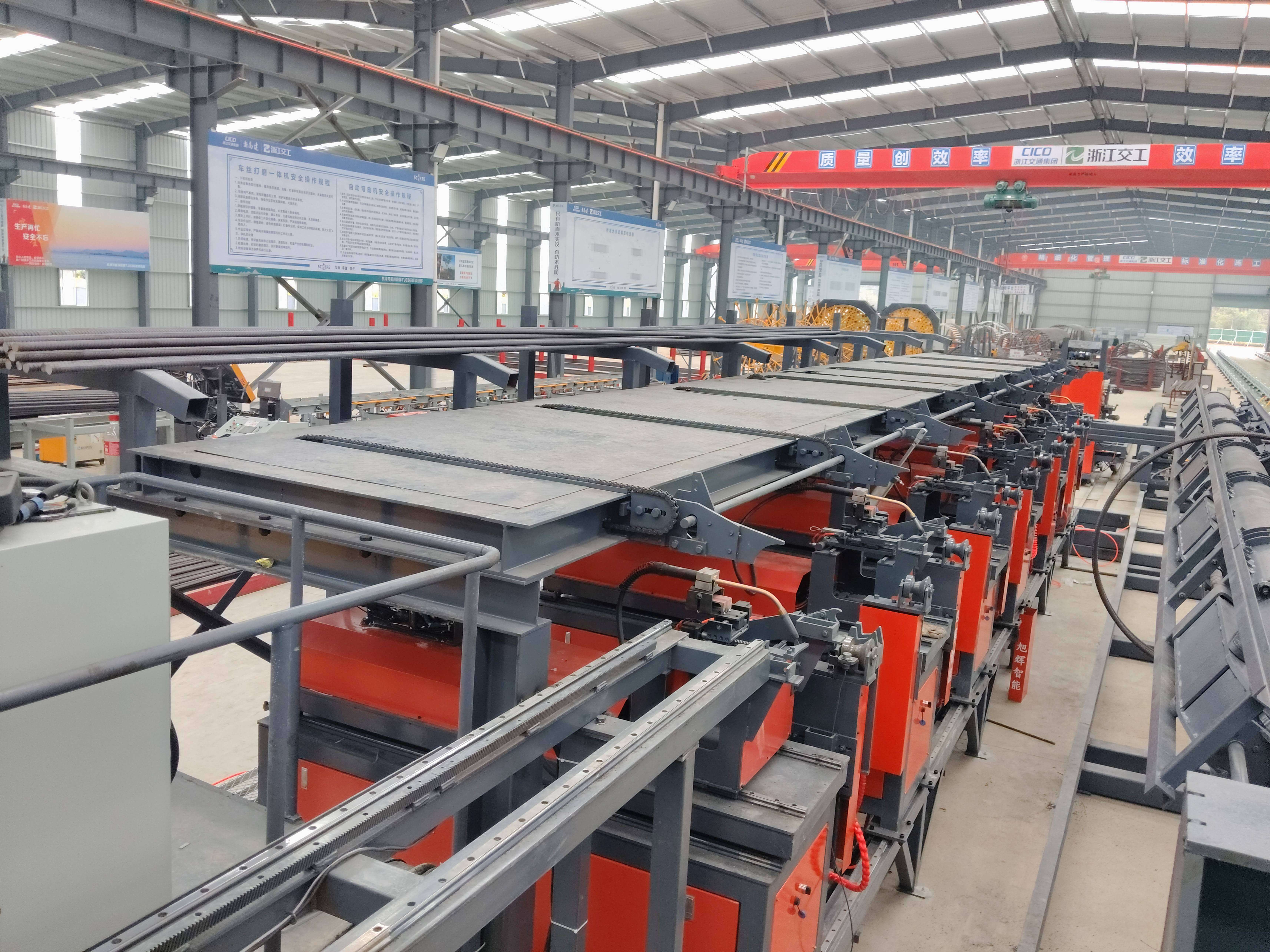

The Xuhui steel arch frame production line adopts a "modular + intelligent" design concept, with core modules including an automatic feeding system, CNC cutting system, bending and forming system, welding and assembly system, and intelligent inspection system. Through collaborative operation between the PLC control system and industrial robots, it achieves seamless integration of raw materials from storage to finished products. Among them, the CNC cutting system is equipped with a high-precision plasma cutting machine, with a cutting speed of up to 1.2 m/min and a cutting accuracy of ±0.5 mm; the bending and forming system is driven by servo motors, with a bending angle error of ≤0.5°, meeting the processing requirements for complex arch frames.

STEP 2: Analysis of Core Advantages
1. Efficiency improvementThe daily production capacity of a single line can reach 50 tons, which is a 300% increase compared to traditional processes, and requires only 2 operators;
2. Accuracy assuranceThrough laser positioning and closed-loop control technology, the dimensional error of finished products is controlled within ±1mm, and the splicing qualification rate is increased to 99%.
3. Security optimizationFull-process automated operation reduces direct contact between personnel and heavy equipment, lowering the accident rate by 80%;
4. Controllable costsEnergy consumption per unit of product has decreased by 25%, and the comprehensive cost has dropped by 15% compared to traditional processes.

STEP 3: Adapt to scenarios and parameters
This production line is suitable for processing deformed steel bars with diameters ranging from 12 to 40 mm, featuring a maximum bending radius of up to 2 m, and capable of producing steel arch supports with spans from 6 to 24 m. The equipment supports customized development, allowing module configurations to be adjusted according to project requirements, such as adding prestressed tensioning systems or anticorrosion coating modules. Currently, Xuhui's steel arch support production line has served over 30 high-speed railway projects across the country, with a cumulative delivery of more than 200 sets of equipment.

Real technical case: Application in the Zhengzhou-Wanzhou High-Speed Railway Project
In the steel arch frame processing of a certain section of the Zhengzhou-Wanzhou High-Speed Railway, the customer adopted the Xuhui production line to replace traditional manual processing. In the early stages of the project, the daily processing volume was only 15 tons, requiring 10 workers to operate in shifts; after introducing Xuhui equipment, the daily production capacity increased to 55 tons, with the number of operators reduced to 3. Upon inspection, the splicing gaps of the finished arch frames were reduced from the original 3-5mm to 0.5-1mm, significantly enhancing the stability of tunnel support. The project leader commented, "The Xuhui production line not only resolved efficiency issues but also ensured project quality through high-precision processing."

FAQ: Q&A Technical Selection Guide
Q1: What is the difference between a steel arch frame production line and an ordinary steel bar bending machine?
A: An ordinary bending machine can only bend a single steel bar, whereas a steel arch frame production line is an integrated piece of equipment covering the entire process of loading, cutting, bending, and welding, capable of producing complete arch frame structures. For example, the Xuhui production line can simultaneously process six steel bars, utilizing robotic arms for automatic grasping and splicing to achieve integrated forming of the arch frame.

Q2: How to choose the production line specifications suitable for a project?
A: It is necessary to comprehensively consider the project scale, rebar diameter, and arch frame span. Taking the CIFI product line as an example:
- Small-scale projects (daily demand ≤ 20 tons): The standard model is recommended, equipped with basic modules, covering an area of approximately 80㎡;
- Medium-sized project (daily demand of 20-50 tons): The enhanced version is recommended, with the addition of automatic welding and inspection modules, covering an area of approximately 120㎡;
- Large-scale projects (daily demand ≥ 50 tons): Customized solutions are recommended, integrating prestressed tensioning and coating systems, with a floor area of approximately 150㎡.

Q3: How difficult is it to operate the equipment? Is professional training required?
A: The CIFI production line employs a visual operation interface, enabling operators to start the equipment simply by setting parameters through a touch screen. The company assigns one technical engineer to each piece of equipment, providing 72-hour on-site training and three months of remote support to ensure customers quickly master operational skills. Additionally, the equipment is equipped with a built-in fault diagnosis system that can monitor operational status in real time and provide early warnings for potential issues.

Q4: Are the post-maintenance costs high?
A: The core components of the equipment (such as servo motors and PLC controllers) are from international brands, with a lifespan of over 10 years. The design of consumable parts (such as cutting blades and bending molds) features standardized interfaces, allowing customers to replace them independently at a single replacement cost of less than 500 yuan. CIFI provides a 2-year free warranty and lifelong maintenance services, with annual average maintenance costs accounting for approximately 3% of the total equipment price.

Reference for full text summary
The automation upgrade of steel arch frame production lines represents a significant step forward in the construction industry's journey towards intelligence. Through technological innovation, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has transformed the efficiency, precision, and safety challenges inherent in traditional processing methods into technological advantages. Its steel arch frame production line, centered on "modular design, intelligent control, and high-precision processing," provides reliable technical support for large-scale projects such as expressways and high-speed railways. Looking ahead, as infrastructure projects demand even higher standards of quality and efficiency, automated production lines will become the industry norm, and Xuhui will continue to leverage technology to drive the standardization and intelligent transformation of the construction industry. For more information, please visit the official website:www.xuhuiintelligenttech.com
