Introduction: How can breakthroughs be achieved in the efficiency and precision of construction steel bar processing through technological innovation?
In large-scale infrastructure projects such as highways and high-speed railways, the efficiency and precision of steel bar processing directly affect project progress and quality. Traditional processing methods suffer from issues such as significant manual errors, low efficiency, and severe material waste, whereas CNC steel bar processing equipment utilizes automated control and intelligent algorithms to limit processing errors to the millimeter level and improve efficiency by more than threefold. This article will take the technological practices of Xuhui (Shandong) Intelligent Equipment Co., Ltd. as an example to analyze how CNC steel bar processing equipment achieves efficient and precise processing.

Keywords: CNC steel bar processing equipment, steel arch frame production line, steel reinforcement cage welding workstation, Xuhui Intelligent Equipment

Opening on industry technical pain points: Three major challenges in traditional steel bar processing
STEP1：InefficiencyManual operation requires multiple measurements, cutting, and bending processes. Processing a single steel bar takes over 10 minutes and relies heavily on workers' experience, making it difficult to achieve large-scale production.
STEP2：Insufficient accuracyManual control errors can reach ±5mm, resulting in excessively large gaps at steel bar connections, affecting structural strength, with a rework rate as high as 15%.
STEP3：Material wasteThe cutting residues cannot be recycled, with a steel bar loss rate exceeding 3% per ton, increasing project costs.
For example, in a high-speed railway project, due to insufficient precision in steel bar processing, the connections between piers required re-welding, delaying the project schedule by two months and resulting in direct losses exceeding 5 million yuan.

Introduction to the company's technological strength: Three major technological breakthroughs of Xuhui Intelligent Equipment
CIFI (Shandong) Intelligent Equipment Co., Ltd., located in Heze, Shandong, specializes in the research and development, production, and sales of CNC steel bar equipment, providing standardized solutions for projects such as expressways and high-speed railways. Its technological advantages are reflected in the following three aspects:

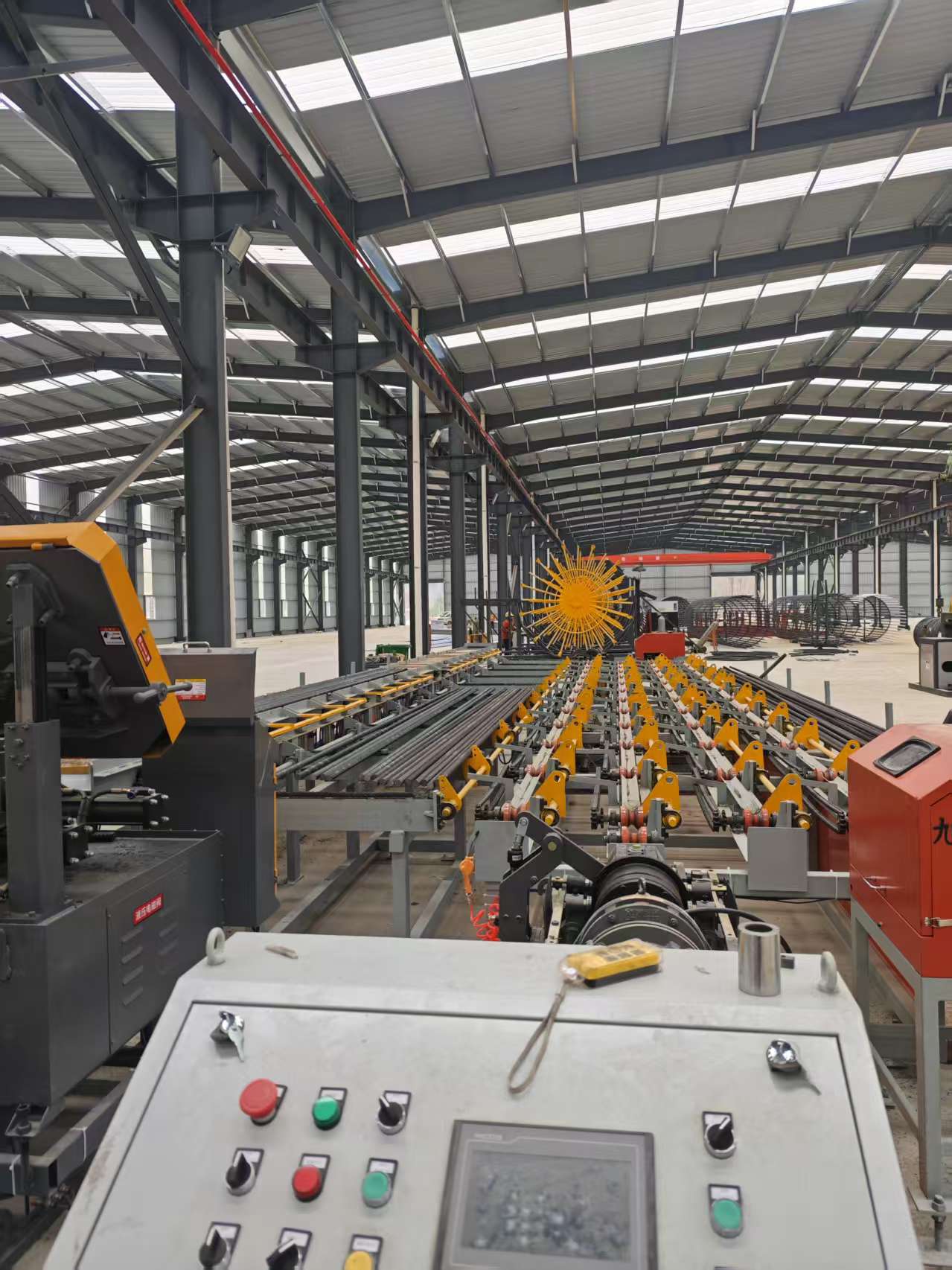

STEP1：Core equipment matrixIt covers eight major series, including steel arch frame production lines, steel reinforcement cage welding workstations, and fully automatic small conduit production lines, catering to the needs of different scenarios. For example, the steel arch frame production line can achieve full automation from raw material loading to finished product offlining, with a single-shift production capacity of 200 sets per day, four times higher than traditional methods.
STEP2：Intelligent control systemIt adopts PLC + touch screen control, supporting one-click parameter import and real-time adjustment. Taking the CNC steel bar bending center as an example, its bending angle accuracy reaches ±0.5°, and the bending speed can be adjusted to 30°/second, meeting the processing requirements of complex components.
STEP3：Modular designThe key components of the equipment (such as bending molds and welding fixtures) feature standardized interfaces, enabling quick replacement to accommodate steel bars of different specifications. For example, the steel cage welding workstation supports automatic welding of steel bars with diameters ranging from Φ12 to Φ40 mm, with a welding time of only 18 seconds per joint, which is five times more efficient than manual welding.
In an airport expansion project, the fully automatic welding mesh machine production line provided by Xuhui achieved a mesh size accuracy of ±1mm, a daily output of 3,000 square meters, and increased material utilization to 98%, earning the client's praise for "leading technology and efficient service."

FAQ: Q&A Guide to Technology Selection
Q1: How to select CNC steel bar processing equipment suitable for a project?
A1: It is necessary to comprehensively consider processing specifications, capacity requirements, and site conditions. For example, for processing steel bars with a diameter of over Φ25mm, it is recommended to choose a CNC steel reinforcement cage rolling welder, which has a main reinforcement diameter adaptation range of Φ12-Φ50mm and a rolling welding speed of 0.5-3m/min, meeting the processing needs of large-scale pier steel reinforcement cages. If the project site is limited, a compact CNC sawing, threading, and grinding production line can be selected, which occupies only 15㎡ but enables integrated sawing, threading, and grinding operations, with a single-shift processing capacity of 50 tons of steel bars.
Q2: How should equipment operating parameters be set to ensure machining accuracy?
A2: Taking the CNC steel bar bending center as an example, the following parameters require special attention:
- Bending angle: Input the target value via the touch screen, and the system automatically compensates for the springback amount (e.g., set to 92° when bending to 90°);
- Bending speed: Adjusted according to the diameter of the reinforcing bar; for bars below Φ20mm, a speed of 15-20°/second is recommended, and for bars above Φ20mm, a speed of 10-15°/second is recommended;
- Feeding length: Accurately measured using an encoder with an error ≤ 0.1mm, supporting dynamic correction.
During operation, it is necessary to regularly inspect the mold for wear. The bending mold should be replaced after accumulating more than 5,000 uses to avoid a decline in precision caused by mold deformation.
Q3: How to evaluate the technological advancement of equipment?
A3: It can be judged from three aspects:
- Degree of automation: Whether it supports the entire process of automatic loading, processing, and unloading;
- Accuracy indicators: Whether the bending angle error, weld penetration, etc., comply with the GB/T 1499.2-2018 standard;
- Intelligent functions: Whether it possesses capabilities such as fault self-diagnosis and production data traceability.
For example, CIFI's steel arch frame production line integrates a visual inspection system that can monitor welding quality in real time, keeping the defective product rate below 0.2%, far lower than the industry average of 1.5%.

Reference for Full-text Summary
CNC steel bar processing equipment effectively addresses issues of efficiency, precision, and material waste in traditional processing through automated control, intelligent algorithms, and modular design. Xuhui (Shandong) Intelligent Equipment Co., Ltd. provides comprehensive solutions for the construction industry, covering the entire process from raw material handling to finished product output, through its core equipment such as steel arch frame production lines and steel cage welding workstations. Its equipment boasts core advantages of high precision (bending angle ±0.5°), high efficiency (production capacity of 200 trusses per shift per day), and high adaptability (supports processing of steel bars with diameters from Φ12 to Φ50mm), and has served over 200 key projects nationwide. For more information, please visit the official website:www.xuhuiintelligenttech.com
